STANDARD ABS (Java)
ABS shutters are a water-resistant shutter perfect for bathrooms or kitchens, they are a hard-wearing plastic shutter.
ABS shutters have a few different options and limitations. They have wider 50mm side stiles and come with Stainless Steel hinges as standard. Rather than magnets they use adjustable ball catches to keep the shutters closed within their frames, this means the way they open and shut will feel different if your fitting other types of shutters in other windows.
Note: The large 76mm insert L frame is not available, so you will need to use a buildout if you need deeper frames.
Note: The Deco frames do not have removable inserts, so consider how you might fit if you want to use a Deco frame.
TECHNICAL INFORMATION
GENERAL SPEC
Material: ABS (Acrylonitrile Butadiene Styrene)
Weight: 14.69kg per sqm
Colours available: 6
Stains: No
Custom Colours: No
Louvre sizes: 47mm, 64mm, 76mm, 89mm,
Control Rods: Centre, off set, hidden
Stiles: 50mm wide, Butt, Rebate, DMould.
Sold panels: No
Shapes: Yes
Bay posts: Yes
Fixed louvres: Yes
Guarantee: 3 Years
FRAMES
L Frames: Insert L , Beaded L,
Z Frames: Bullnose, Deep Bullnose, Beaded, Crown, Tiara
Deco: Camber
Hang Strips: 27mm
Buildouts: Yes
Tposts: 32mm, 46mm
Corner posts: 32mm, 46mm
Bay posts: 32mm, 46mm,
Tracks: Yes
Battens: yes
Side magnets: Yes
Catches: Yes
Blackout: No
HIDDEN TILT MAX LOUVRES
Maximum louvre quantity within one hidden tilt section.
Average 1400mm high shutter
64mm – 21
76mm – 16
89mm – 14
114mm – 10
SIZE LIMITATIONS
Min panel width: 152mm
Min panel height: 250mm
Max panel width: 500mm (47mm), 800mm (64mm, 76mm) 890mm (89mm)
Max panel height: 3000mm
Max bi-fold panel width: 550mm (47mm), 610mm (Rest)
Max panel height without rail:1828mm
Max shutters hinged: 2
Unsupported shutters (Bottom gap larger than 2.5mm) : L, R, LR
Unsupported tracked shutters (No bottom track) : LL, RR, LLRR
Top and bottom rails sizes: 69.85mm-165.1mm
Middle rail sizes: 76.2mm
TOLERANCES
Width: Plus or Minus 1.6mm
Height: Plus or Minus 1.6mm
47mm louvre can be off by +/-19mm.
63mm louvre can be off by +/-25mm.
76mm louvre can be off by +/-31mm
89mm louvre can be off by +/-38mm.
114 mm louvre can be off by +/-51mm.
Tier on tier gap 2.5mm

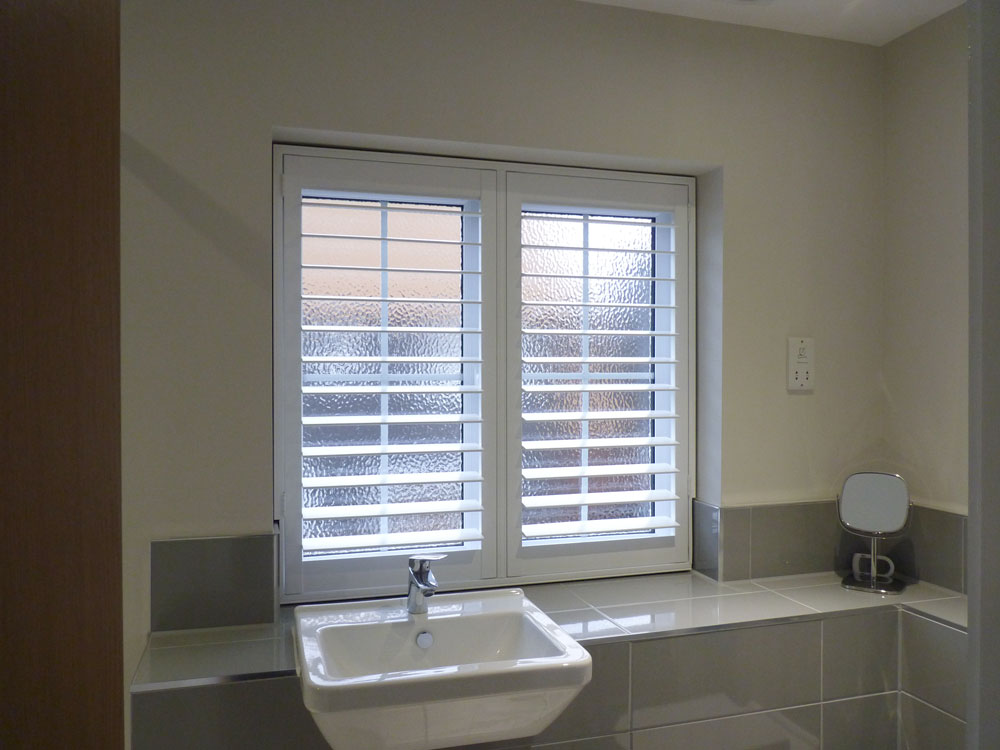

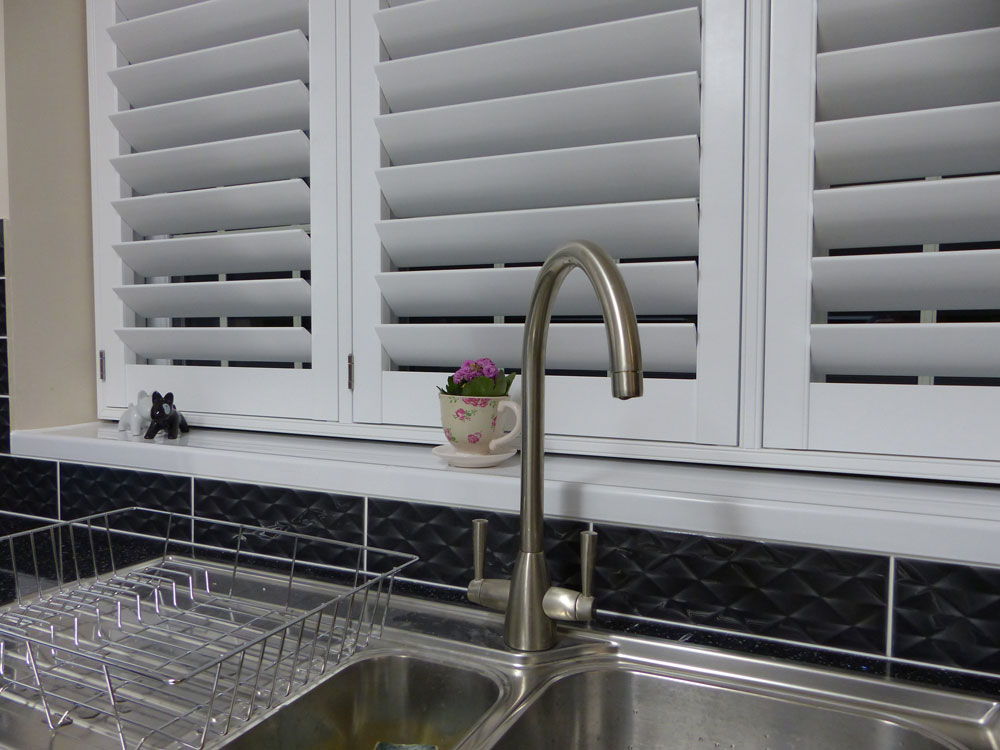

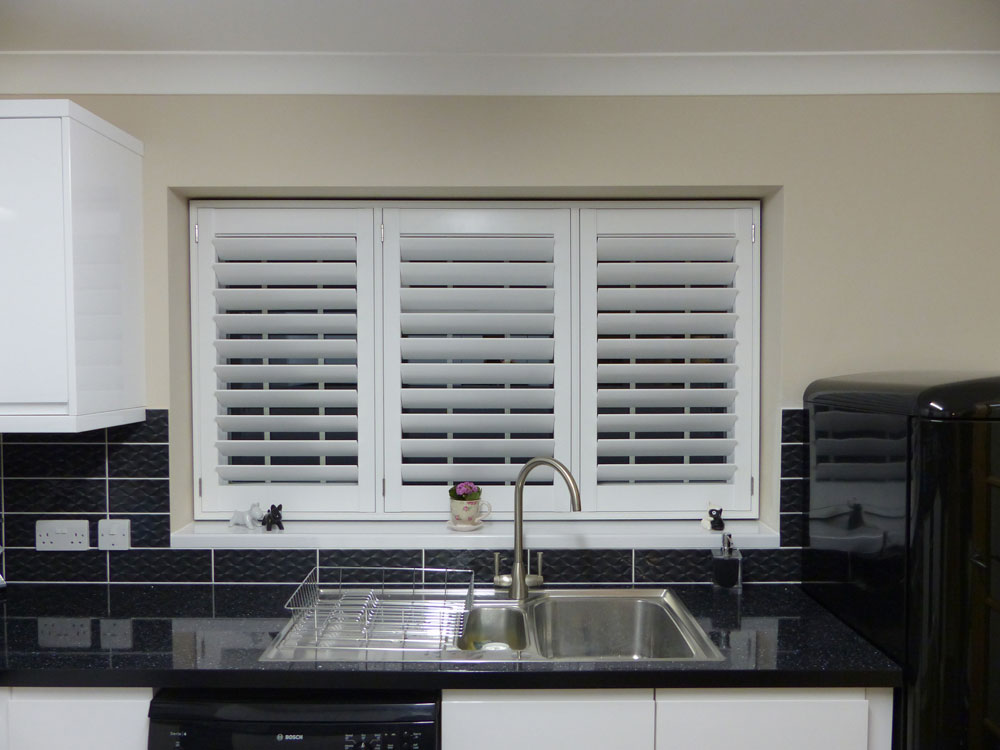

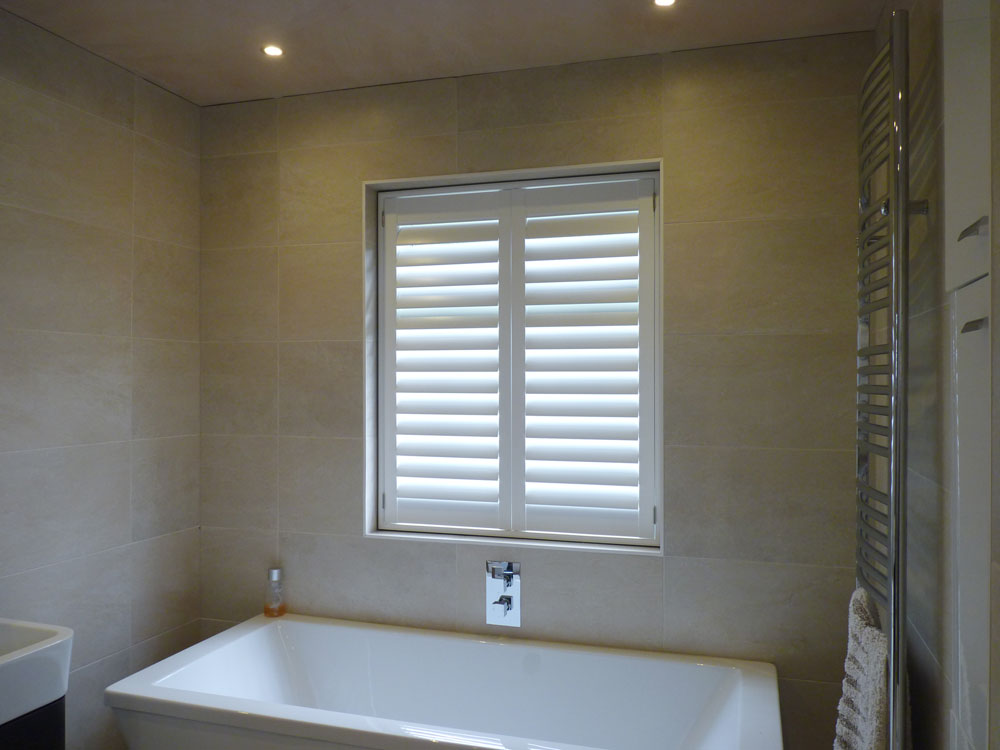

PHOTO GALLERY
