TRACK MOUNTED FOLDING
Track mounted shutters require an even number of panels on each side to ensure they open properly. Like the folding on windows, it’s key to match the number of shutters to the door layout, although this can be harder to achieve on doors than windows.

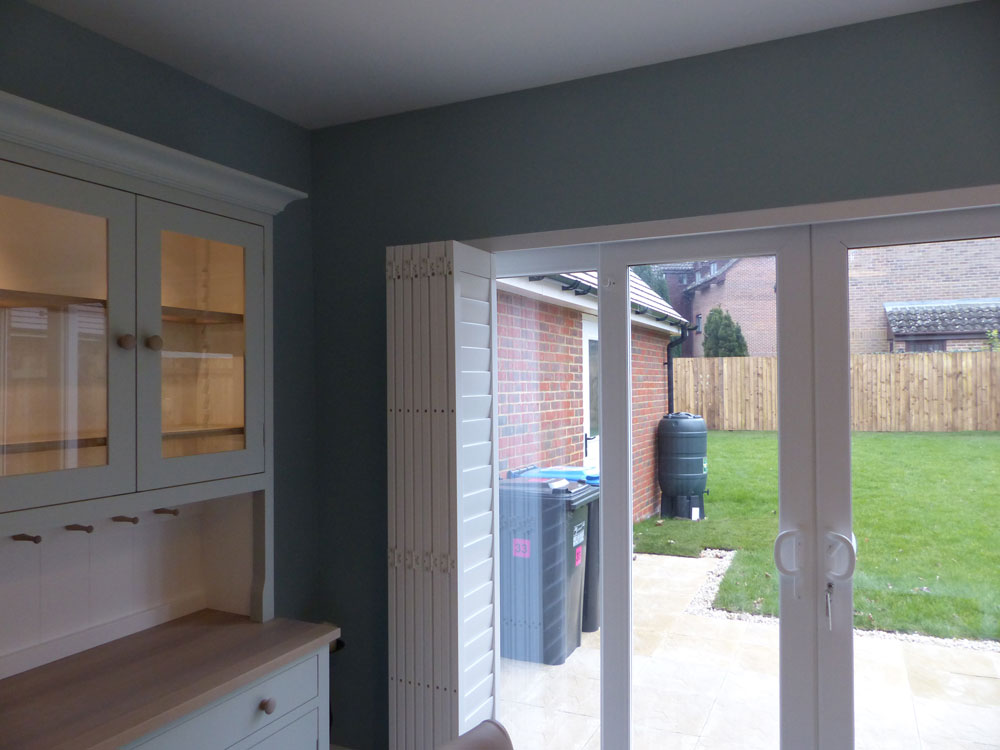

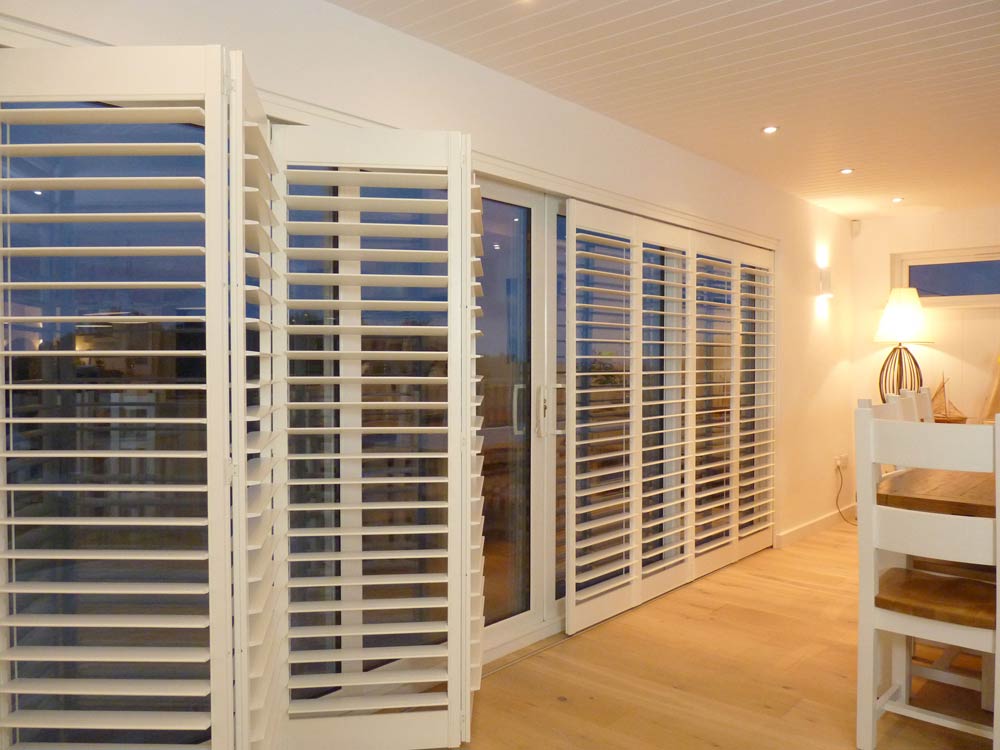

FOLDING – Track shutters can bi-fold to the left or right by sliding them. Small wheels attached to the top of the panel run in an aluminium track fitted to the top of the window recess. This means the panels are all attached to the top track, so when opened they protrude into the room at right angles and cannot be folded flat back against the wall.
- The maximum single panel width for track mounted shutters are:
- Top and bottom track – Max width is 660mm.
- Top track only – Max width is 550mm.

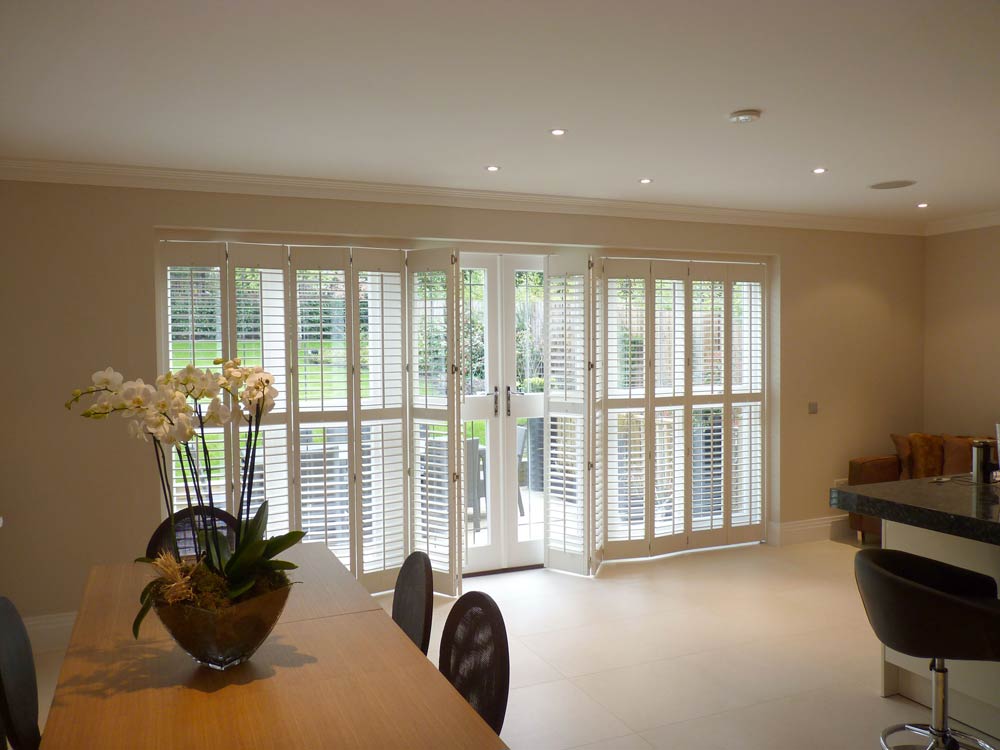

- Max window width – 12 x shutters @ 660mm = 7920mm.
