DIY Shutters

Width*
Enter the overall width of the shutter frame you require. (Ensure you have deducted your fitting clearance)

£

Height*
Enter the overall height of the shutter frame you require. (Ensure you have deducted your fitting clearance)

£

( {product_price} * ( ( {field.5a225092cbdf85.84710863.value}/1000 ) * ( {field.5a225152cbdf95.06543043.value}/1000 ) ) ) £

ROOM NAME*
The room name is printed on the outside of the box for reference (not on the shutters) For example enter: Bedroom left

£
HAVE YOU MADE YOUR FITTING DEDUCTIONS?*
Ensure you have deducted your fitting clearance (i.e. the shadow gap), the sizes entered must be the exact frame size you require.

Yes £
No £
SELECT SHUTTER TYPE*
Standard MDF - Low cost, traditional beaded design, made from MDF with a plastic coating. A heavier shutter so suitable for small windows.
Elite WOOD - Lightweight and strong with a modern simple side stile design, it's made from hardwood with engineered stiles and a UV resistant spray finish.
Easy Fit Kit - The quickest and easiest way to install shutters to your windows. Elite Wood with special D1 fixings and beaded L frame, designed for inside recess windows.

Standard (MDF) £
Elite (WOOD) .5116*{field.5a225317c5a215.06997508.price} £
Easyfit Shutter Kit .6139*{field.5a225317c5a215.06997508.price} £
TPOSTS
TPosts are built into the shutter frames, they are used to match vertical mullions in your window to ensure the shutters line up with your window features. They make opening shutters easier and provide easy access to side windows, typical use is for 2, 3 or 4 section UPVC windows.
Measure all T-Posts from the left to the centre of the T-Post. Remember to deduct the fitting clearance from your T-Post measurements.

£

£

£

£

£

£

£
MIDDLE RAIL
The horizontal middle rail divides the louvre blades in half and allows the louvre blades to be operated independently either side of that middle rail.
Heights over these sizes will require a rail for strength:
Standard = heights over 1879mm
Elite = heights over 1981mm
Easy Fit Kit = heights over 1981mm
Note: If you choose not to have a rail on a shutter over this height it will not be guaranteed.
From the height you provide, the position of the horizontal rail can vary by half a louvre to allow the maximum number of louvres per shutter height.
For 63mm can be +/- 25mm
For 76mm can be +/- XXmm
For 89mm can be +/- 38mm
Rails are 15.9mm thick x 76mm wide

£

MIDDLE RAIL LOCATION*
Measure from the window sill up to the centre of where you would like the rail.
Remember to deduct any fitting clearance if you are ordering exact frame sizes.
Note: The final rail position can vary as much as half a louvre.

£
CONTROL RODS*
Control rods are used to operate your louvre blades, they connect your louvres together to make tilting them easy. You can choose from a visible rod or a hidden built-in mechanism. We recommend hidden control rods for:
For a modern clean look
If you have leaded lights
If you have glazing bars
In a bathroom for easy cleaning
A clear view through the shutters

£

CONTROL RODS*
Control rods are used to operate your louvre blades, they connect your louvres together to make tilting them easy. You can choose from a visible rod or a hidden built-in mechanism. We recommend hidden control rods for:
For a modern clean look
If you have leaded lights
If you have glazing bars
In a bathroom for easy cleaning
A clear view through the shutters

£

CONTROL RODS*
Control rods are used to operate your louvre blades, they connect your louvres together to make tilting them easy. You can choose from a visible rod or a hidden built-in mechanism. We recommend hidden control rods for:
For a modern clean look
If you have leaded lights
If you have glazing bars
In a bathroom for easy cleaning
A clear view through the shutters

£

SPLIT HEIGHT LOCATION
Enter the height from the bottom of the frame to the center of where you would like the mechanism to be split.
Note, the final position of this split can vary as much as half a louvre.

0 £

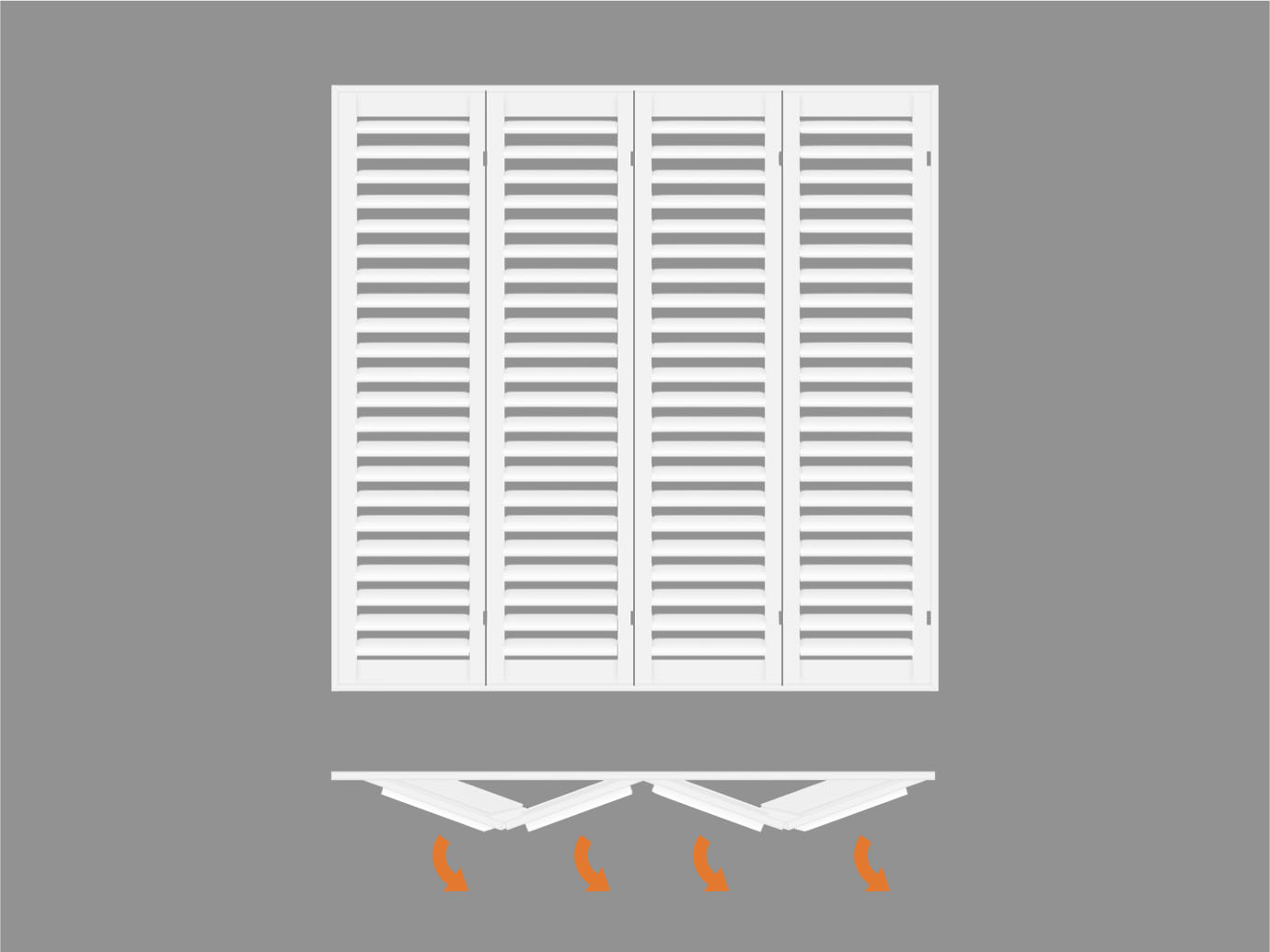

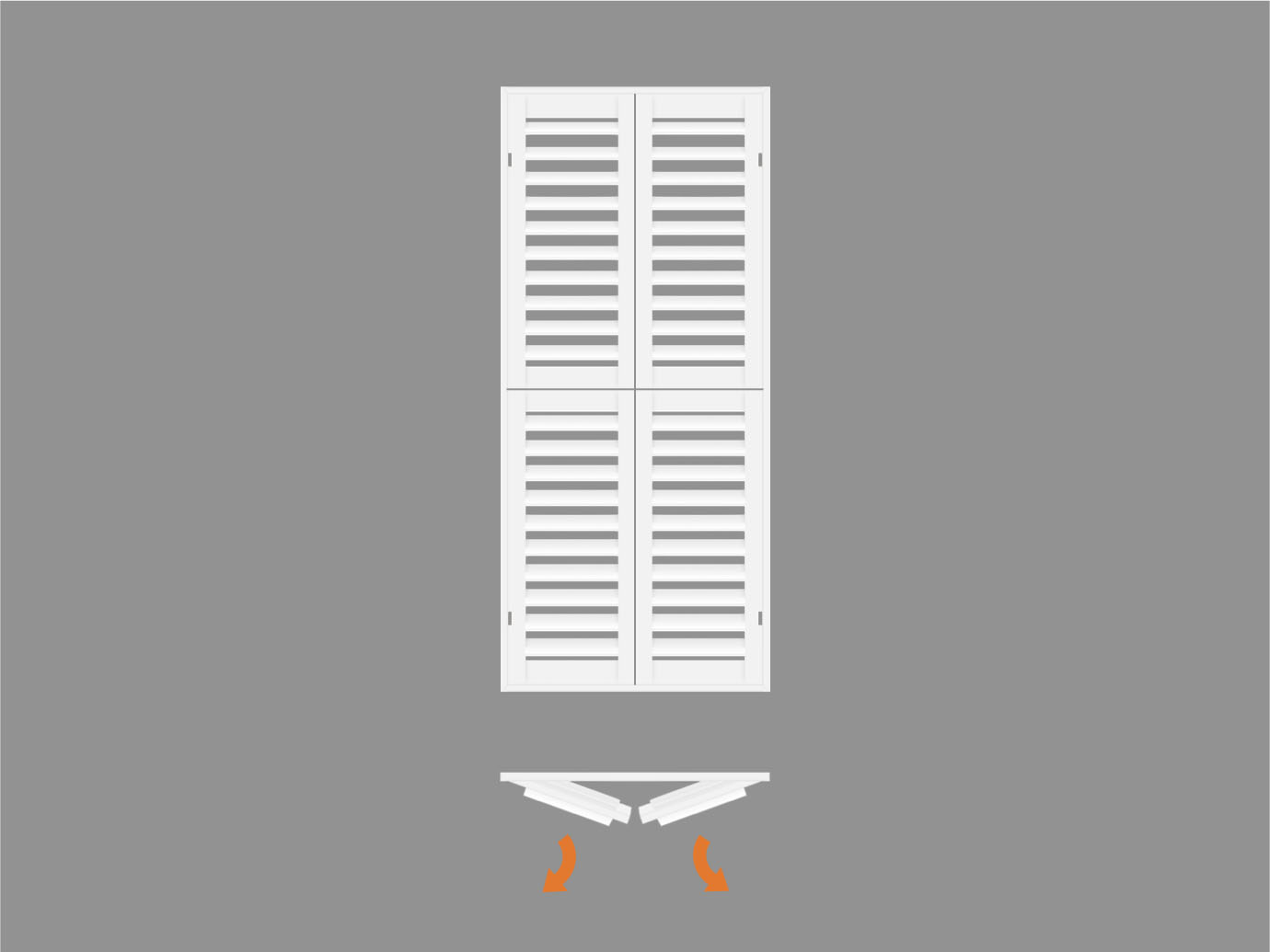

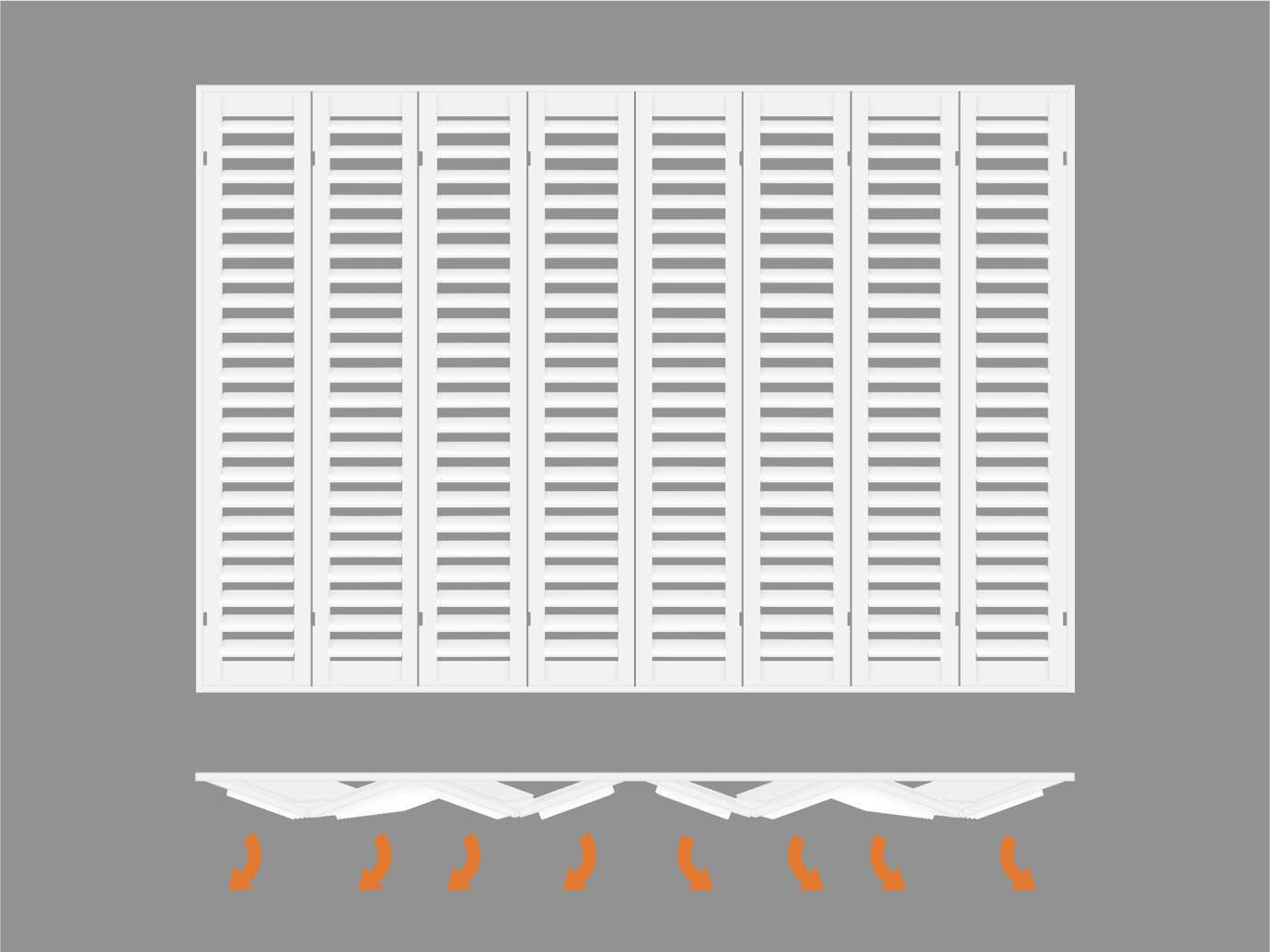

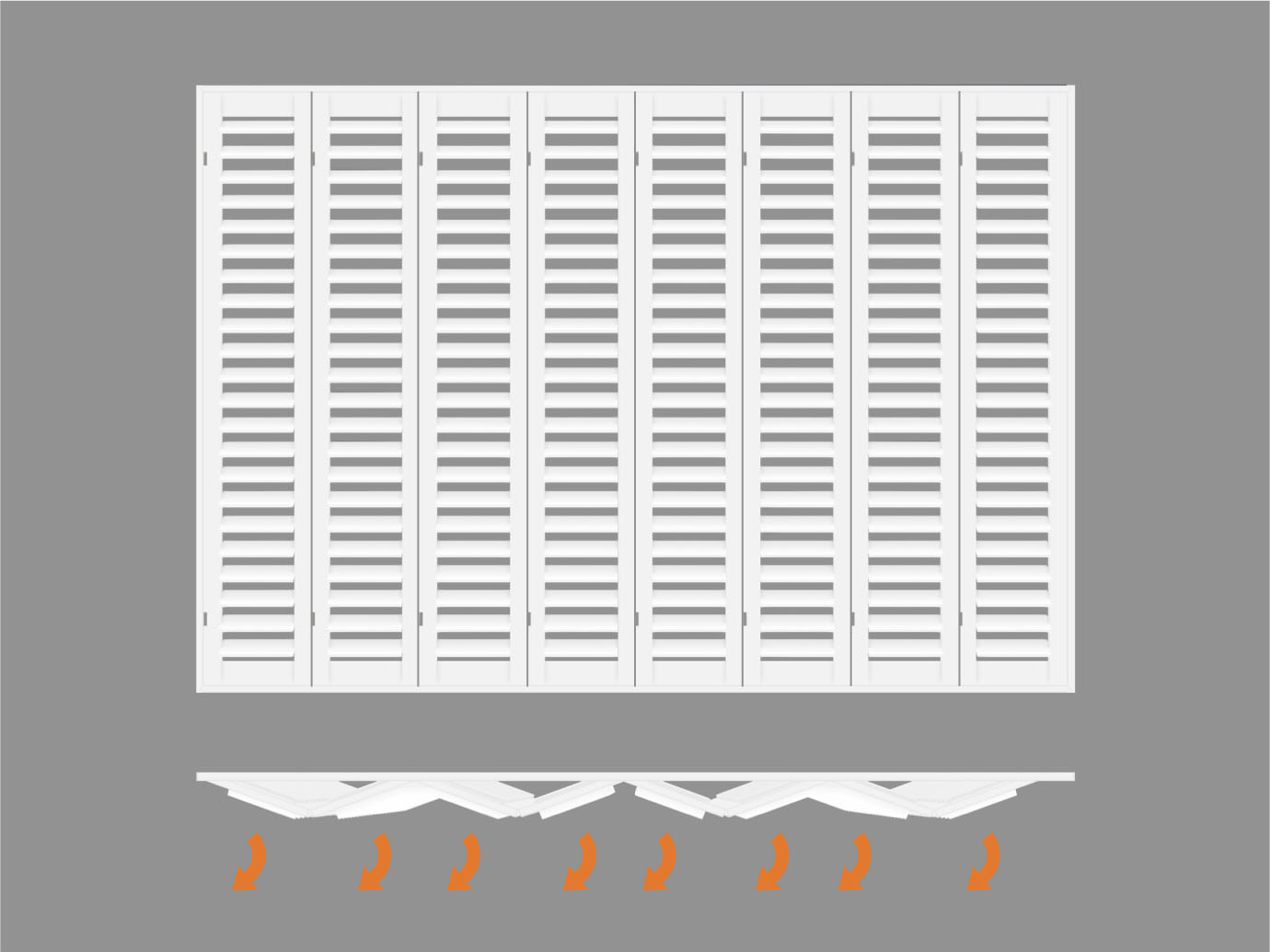

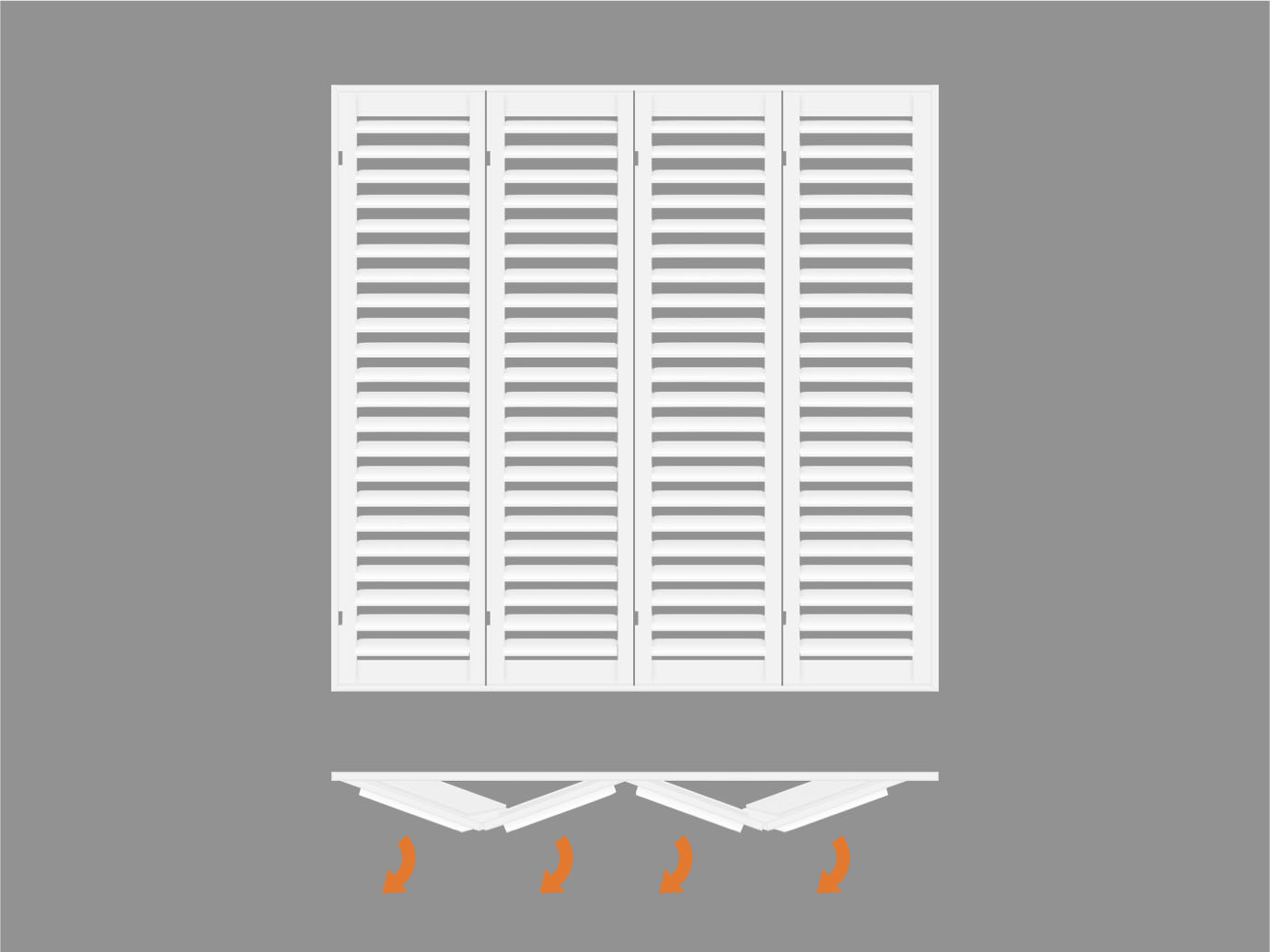

FOLDING*

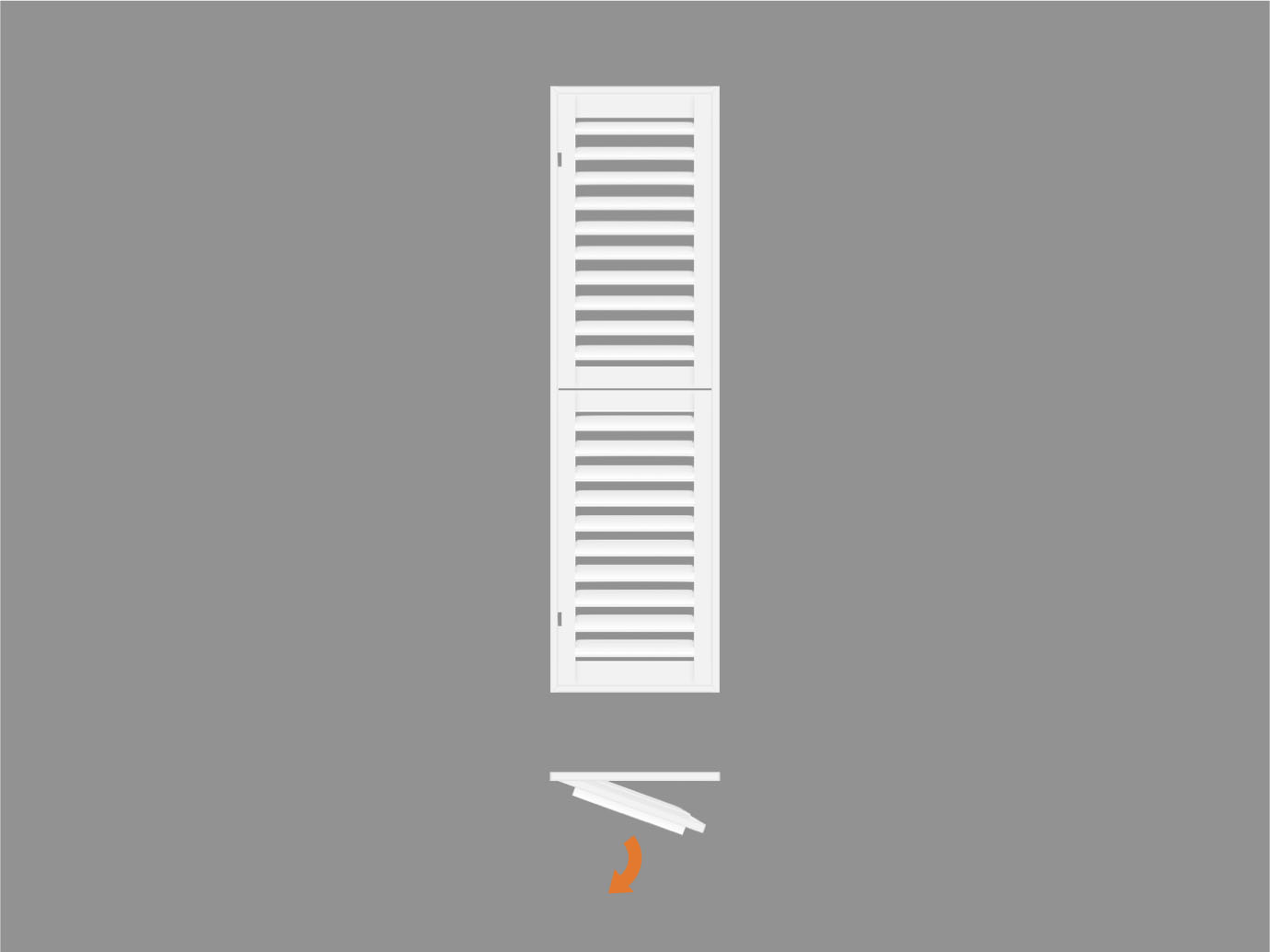

L = 1 x shutter hinged on the left

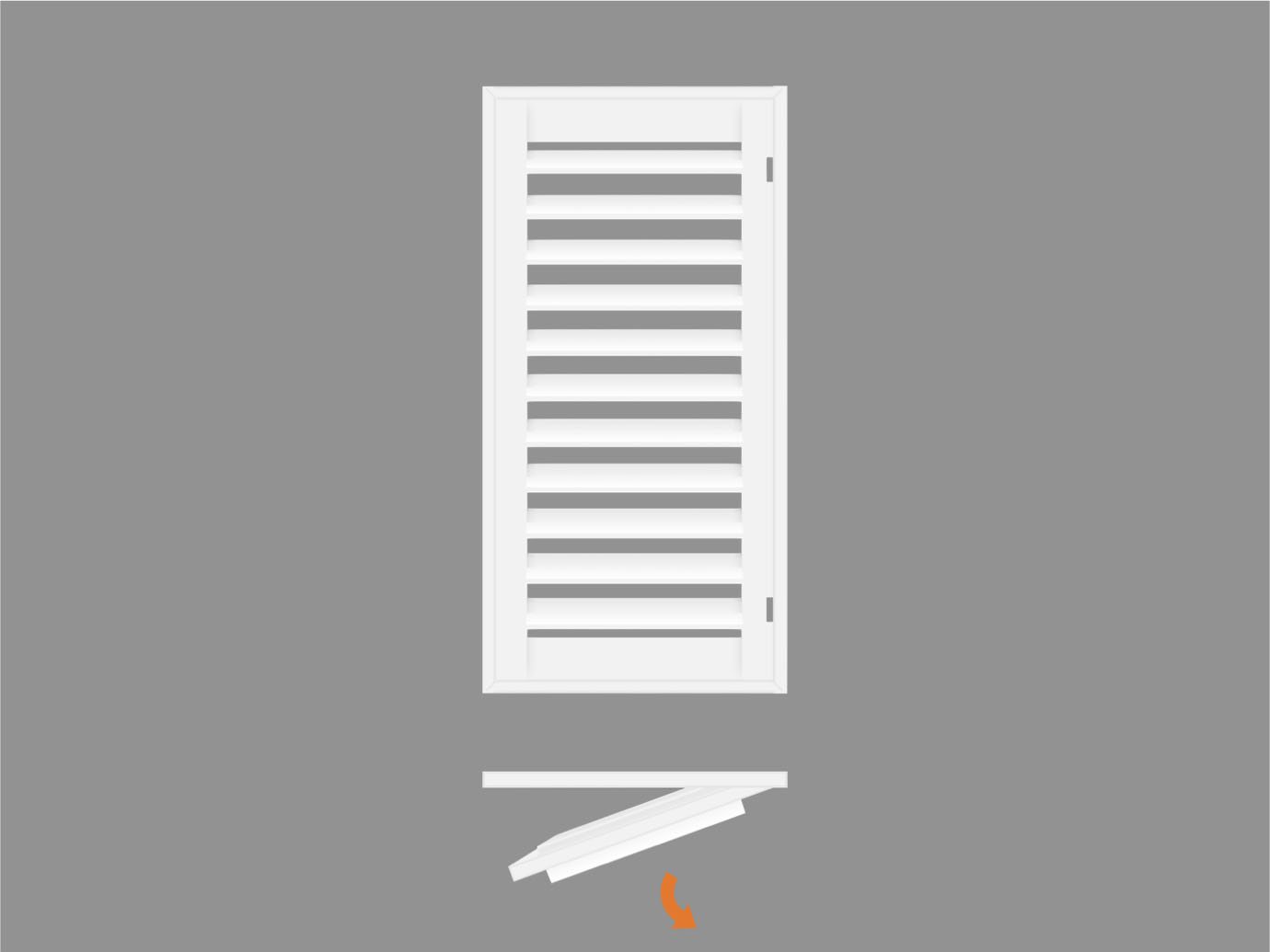

R = 1 x shutter hinged on the right

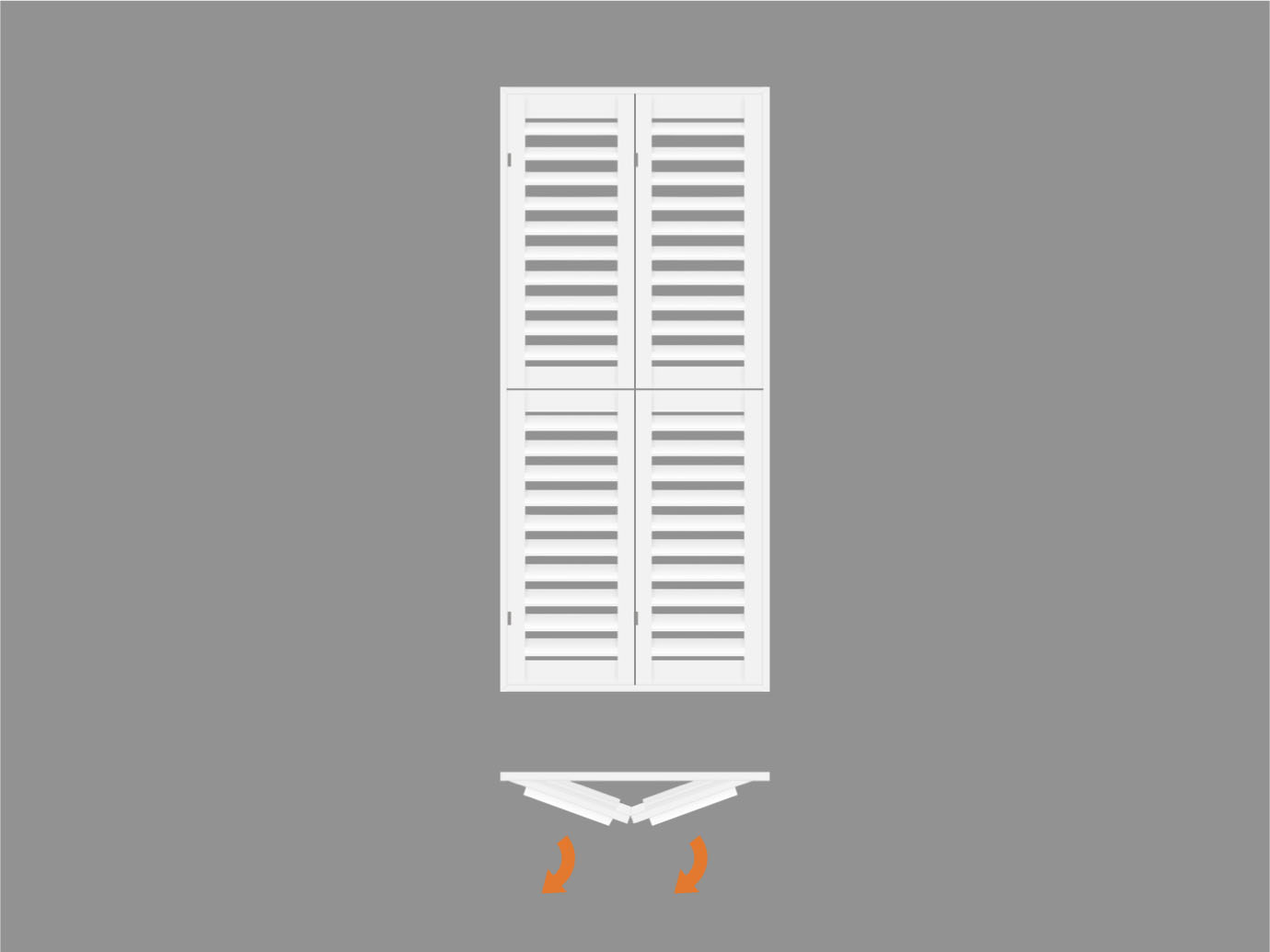

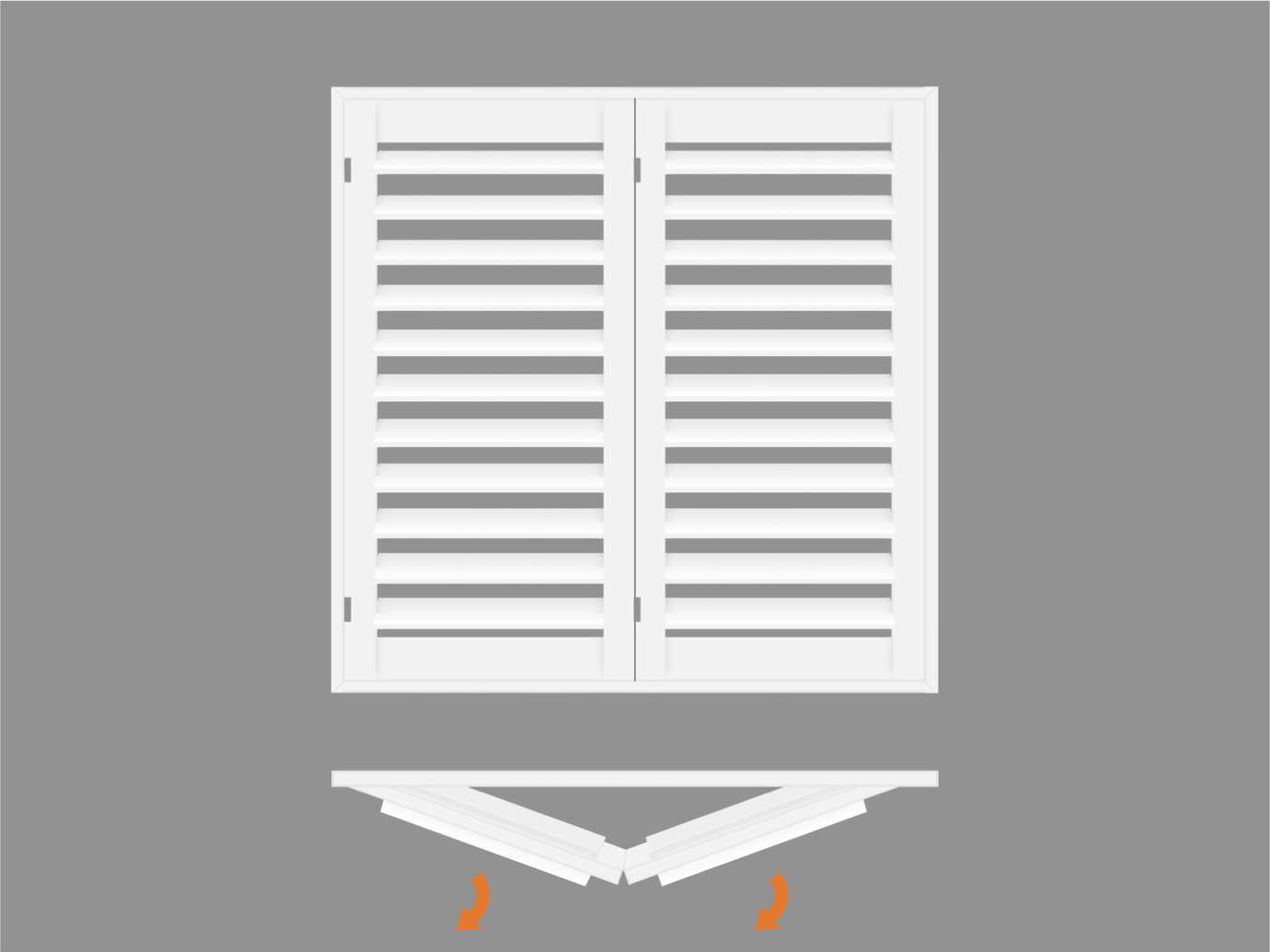

LL = 2 x shutters bi-folding left

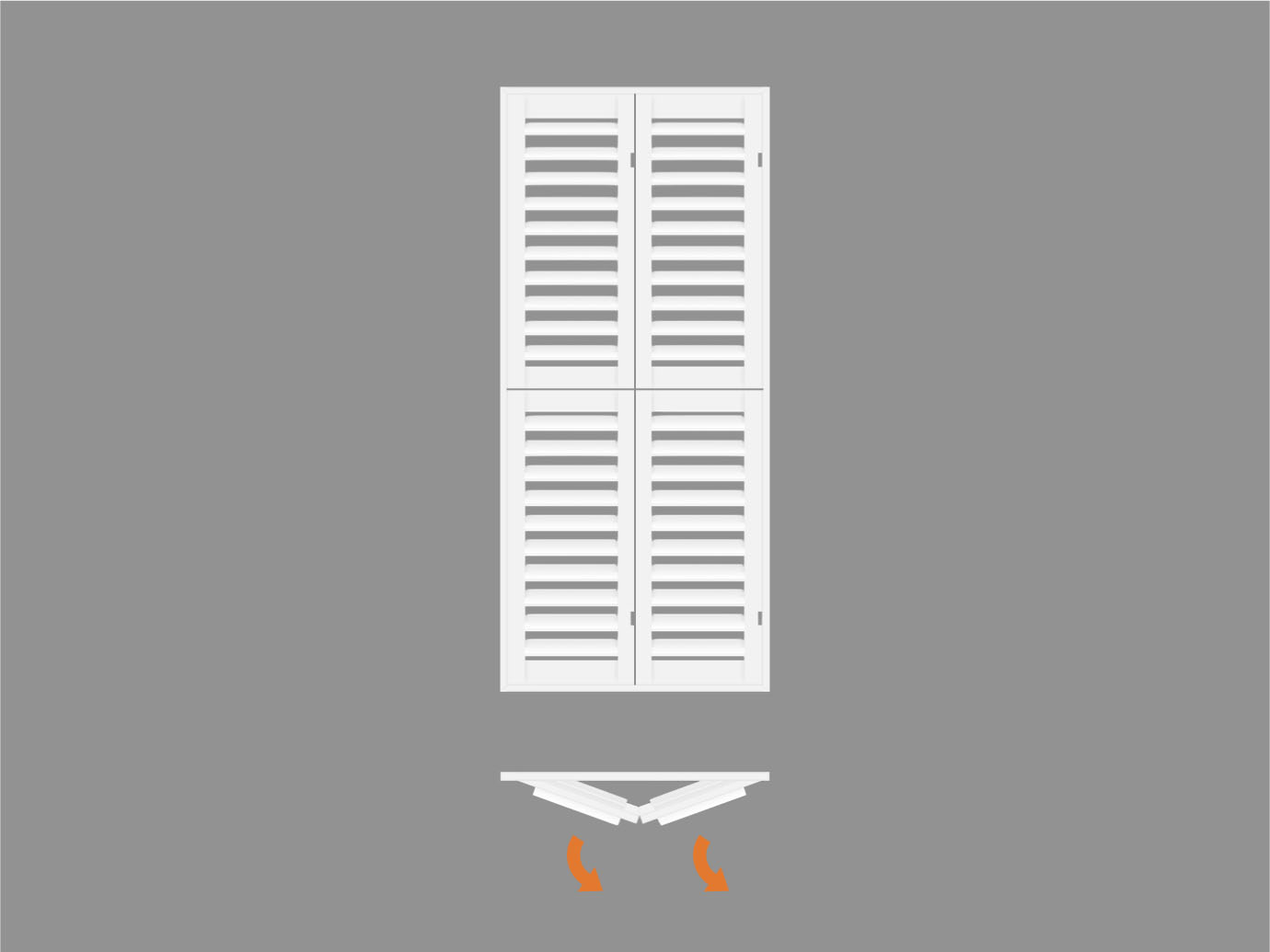

RR = 2 x shutters bi-folding right

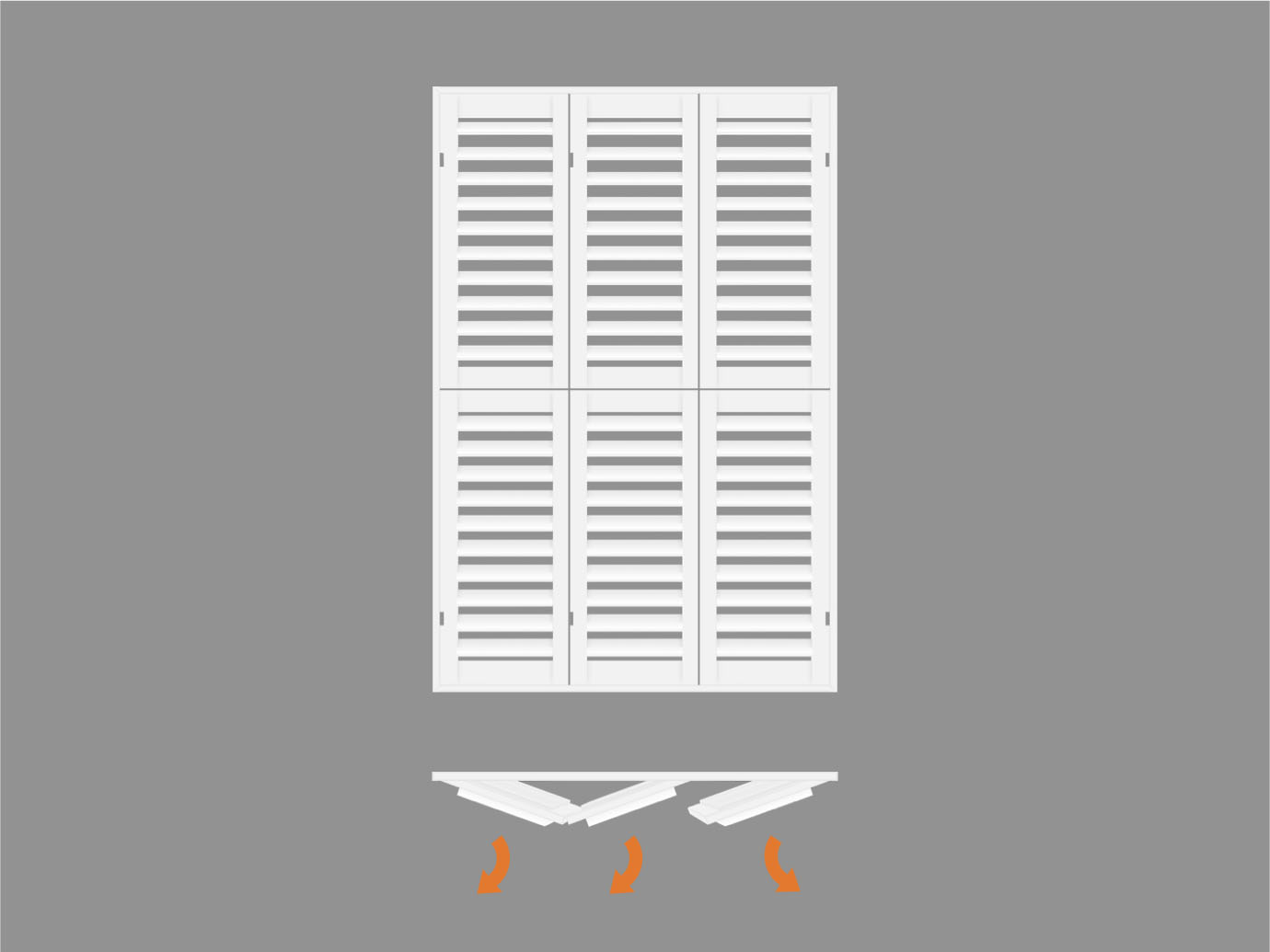

LLR = 3 x shutters, 2 bi-folding left, 1 opening right

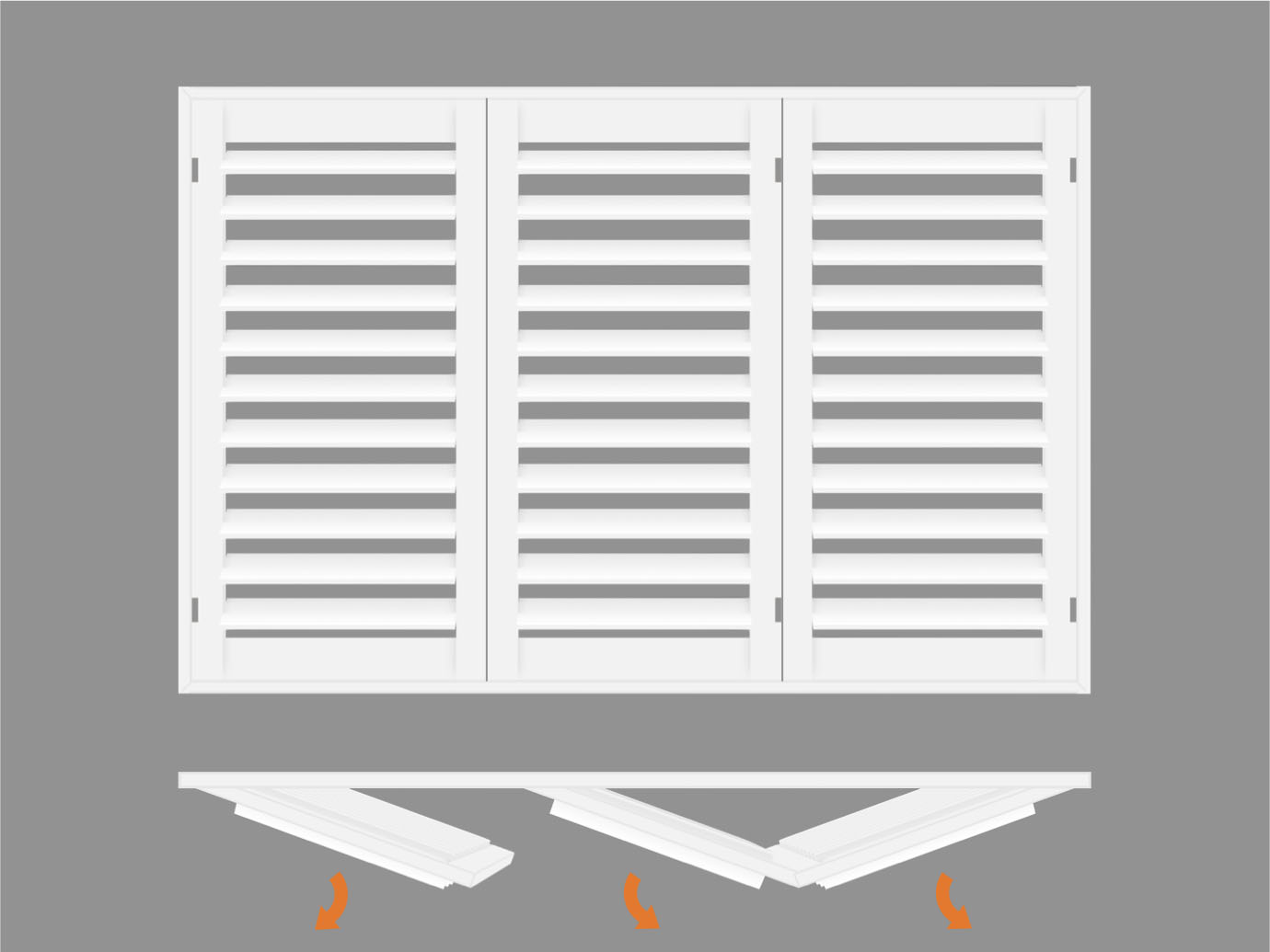

LRR = 3 x shutters, 1 opening left, 2 bi-folding right,

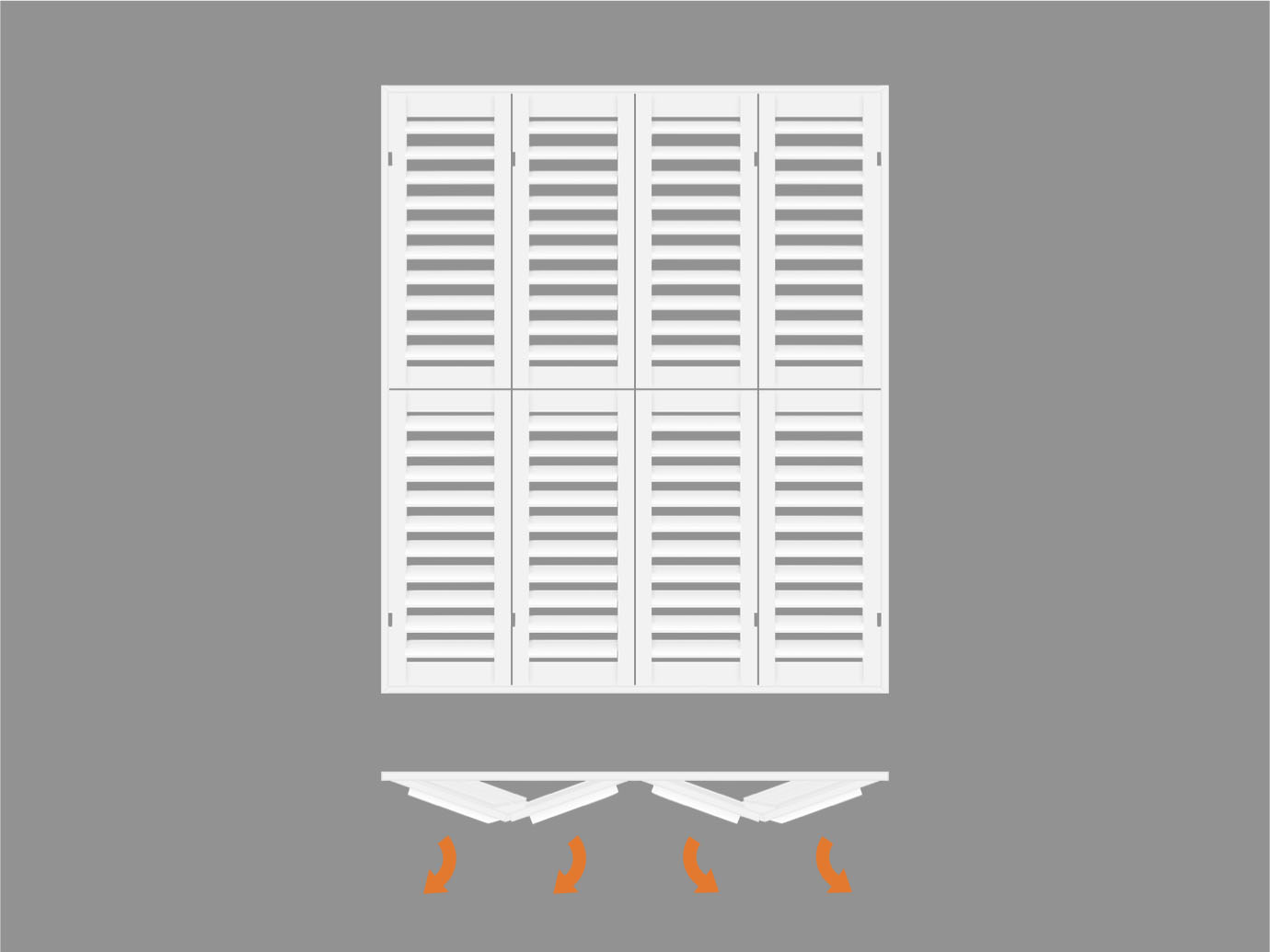

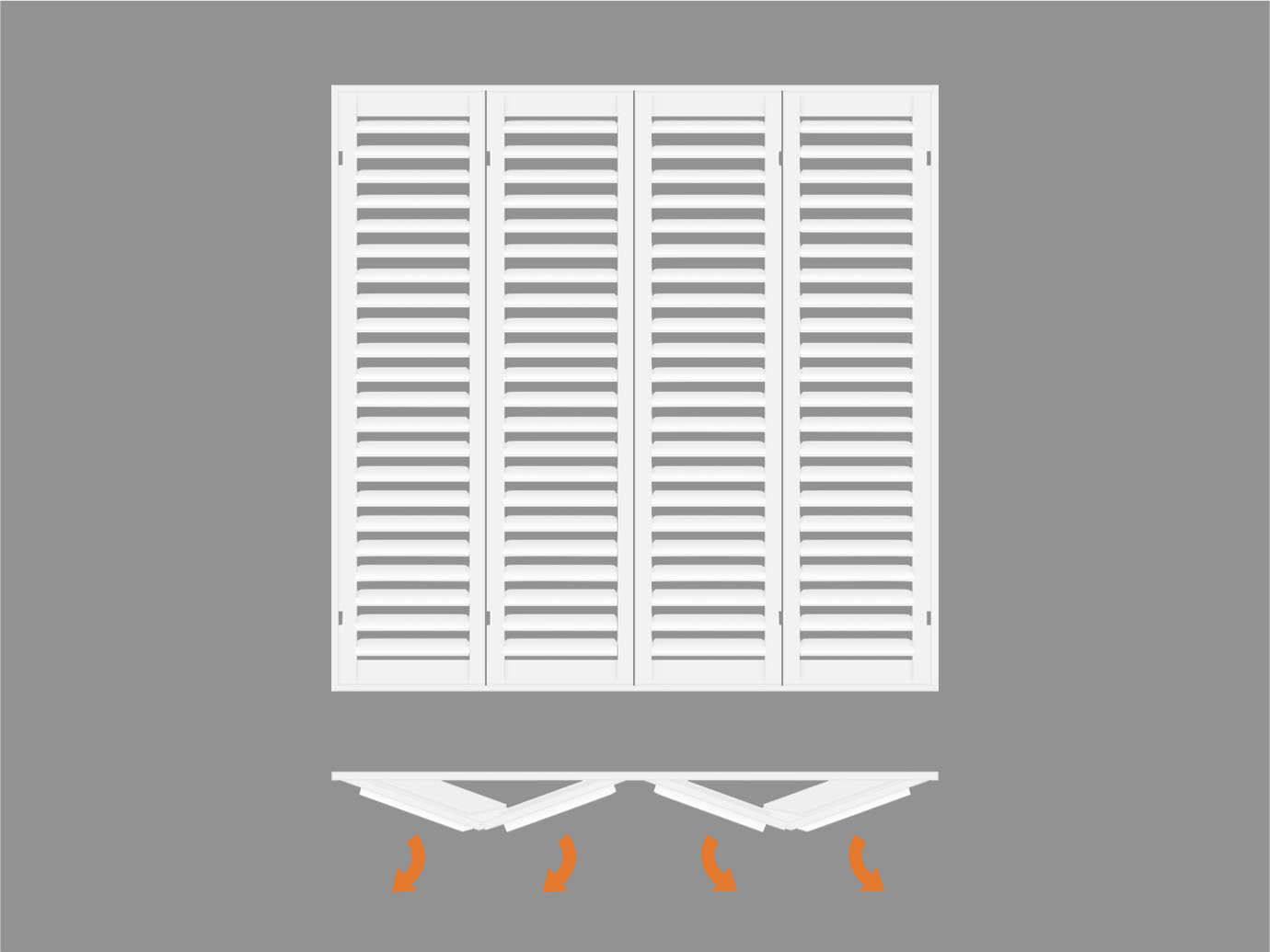

LLRR = 4 x shutters, 2 bi-folding left, 2 bi-folding right

£

FOLDING*
Select the folding you require.
L = Left opening shutter
T = Vertical Tpost
R = Right opening shutter
Other = If you require a different folding style
Note: Custom folding might not be guaranteed or possible to manufacture and will require checking.

£

FOLDING*
Select the folding you require.
L = Left opening shutter
T = Vertical Tpost
R = Right opening shutter
Other = If you require a different folding style
Note: Custom folding might not be guaranteed or possible to manufacture and will require checking.

£

FOLDING*
Select the folding you require.
L = Left opening shutter
T = Vertical Tpost
R = Right opening shutter
Other = If you require a different folding style
Note: Custom folding might not be guaranteed or possible to manufacture and will require checking.

£

FOLDING*
Select the folding you require.
L = Left opening shutter
T = Vertical Tpost
R = Right opening shutter
Other = If you require a different folding style
Note: Custom folding might not be guaranteed or possible to manufacture and will require checking.

£

FOLDING*
Select the folding you require.
L = Left opening shutter
T = Vertical Tpost
R = Right opening shutter
Other = If you require a different folding style
Note: Custom folding might not be guaranteed or possible to manufacture and will require checking.

£

FOLDING*
Select the folding you require.
L = Left opening shutter
T = Vertical Tpost
R = Right opening shutter
Other = If you require a different folding style
Note: Custom folding might not be guaranteed or possible to manufacture and will require checking.

£

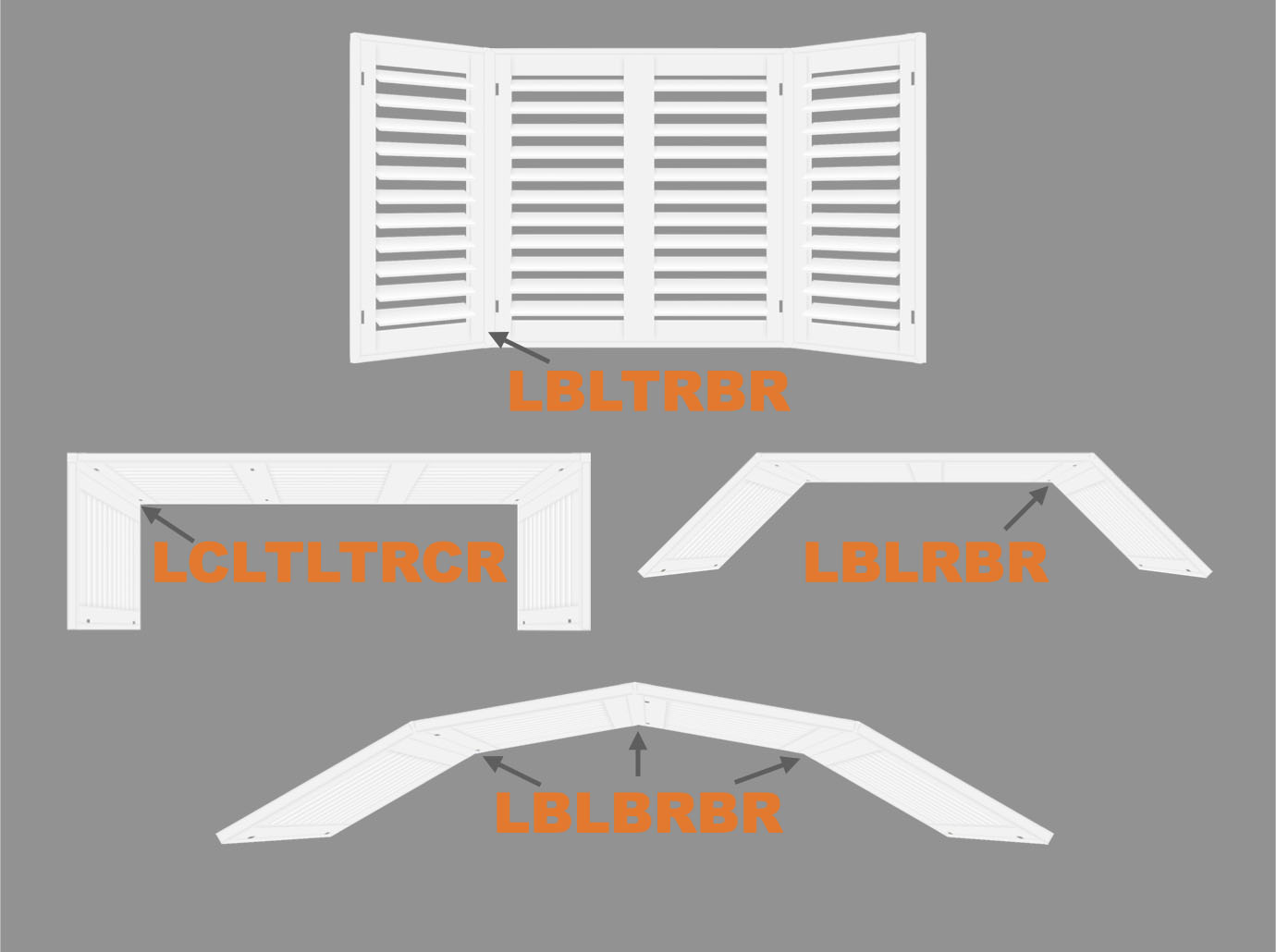

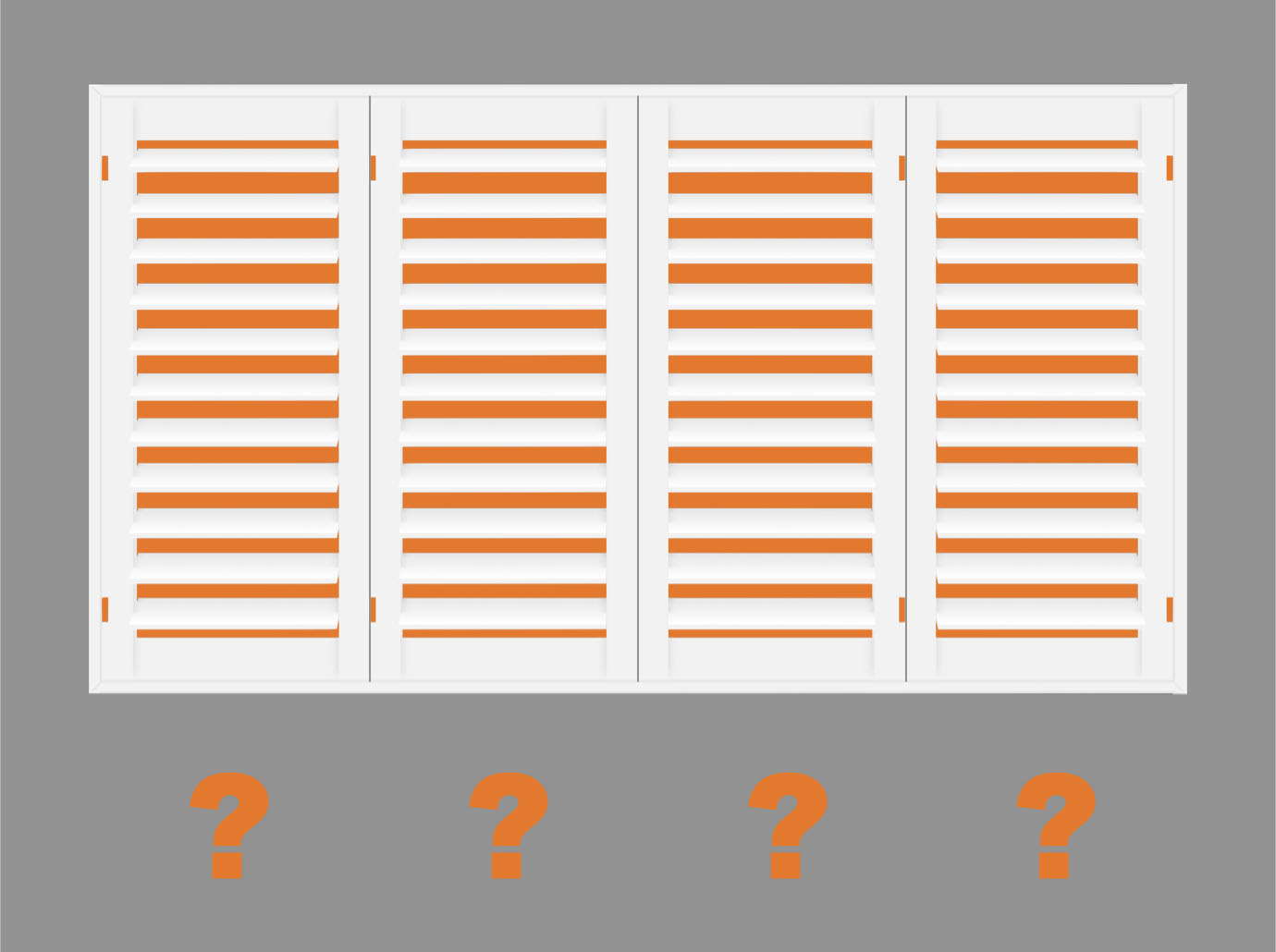

CUSTOM FOLDING*
Enter the folding you require into the notes box using the following letters:
L = Left opening shutter
T = Vertical Tpost
R = Right opening shutter
Note: Custom folding might not be guaranteed or possible to manufacture and will require checking.

£

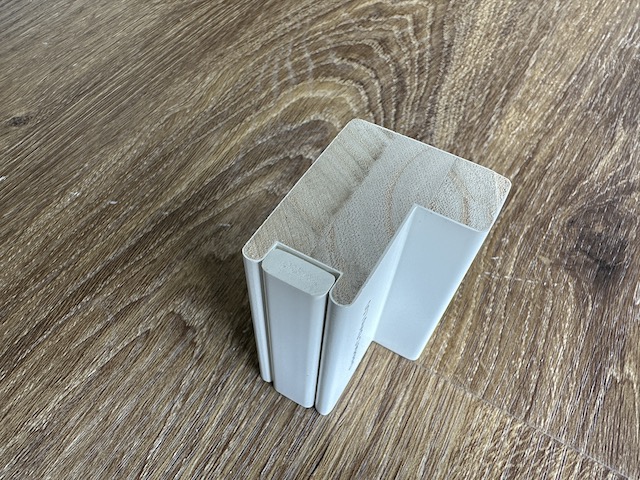

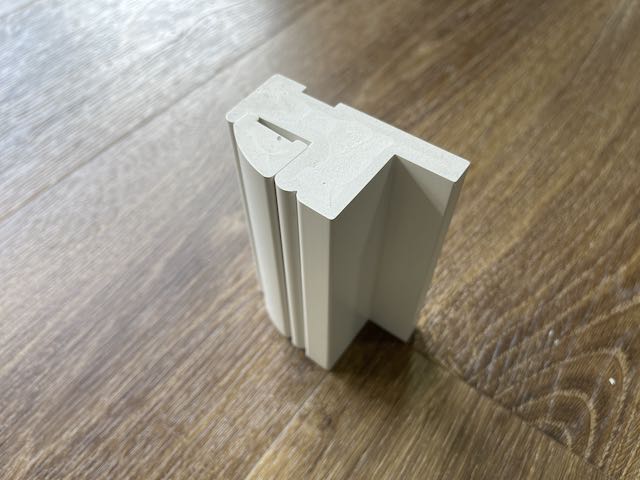

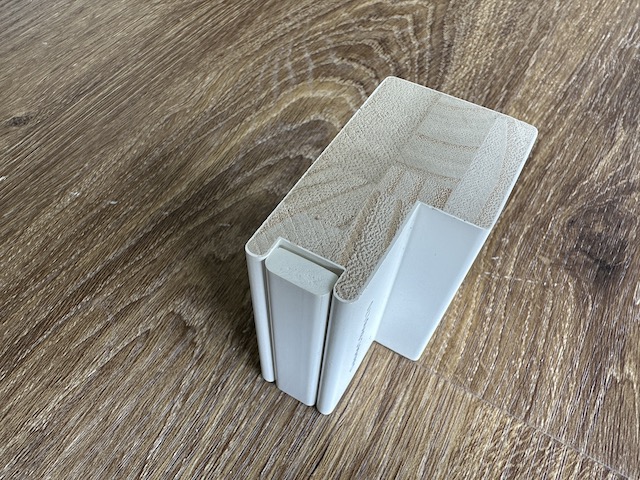

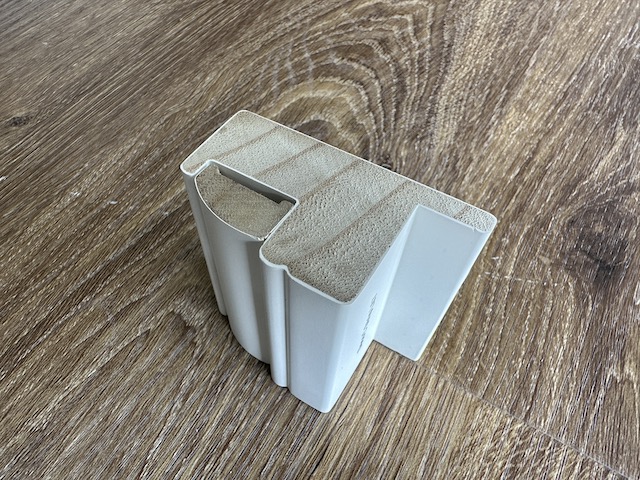

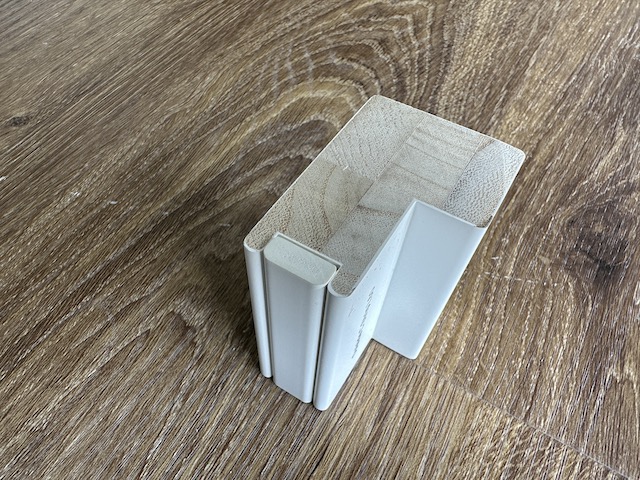

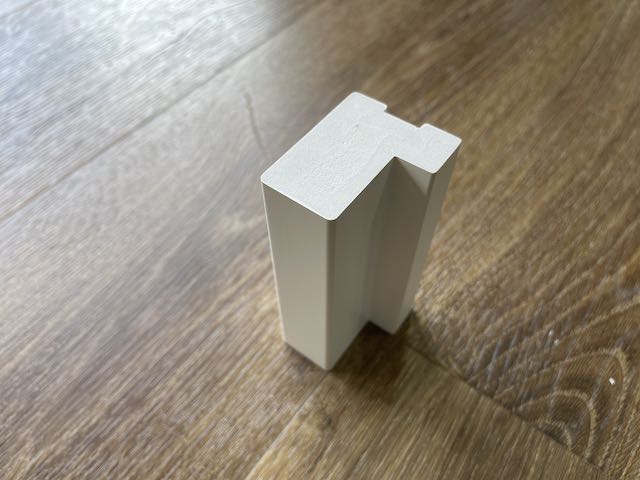

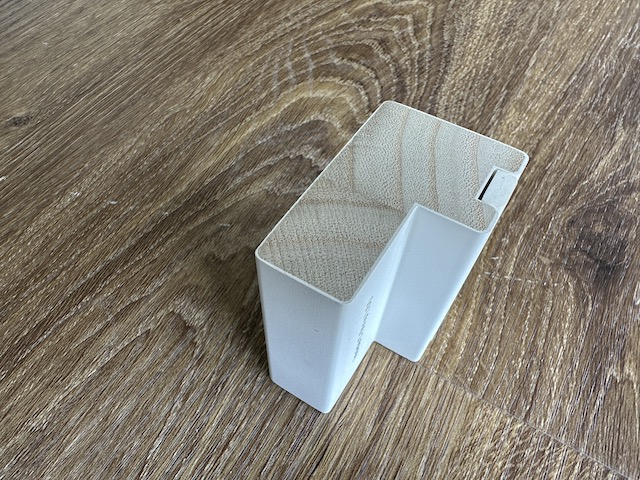

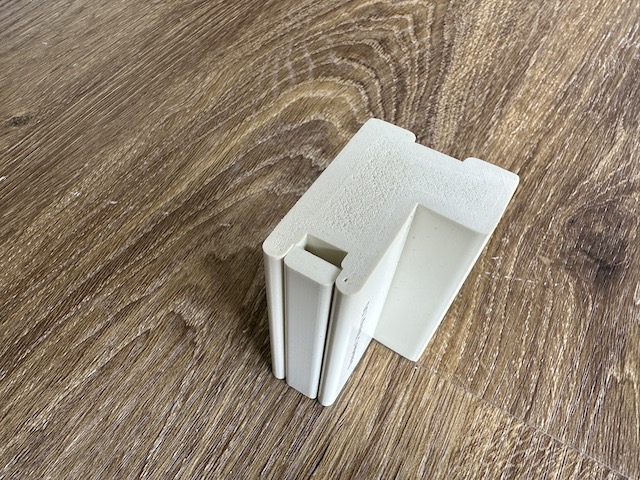

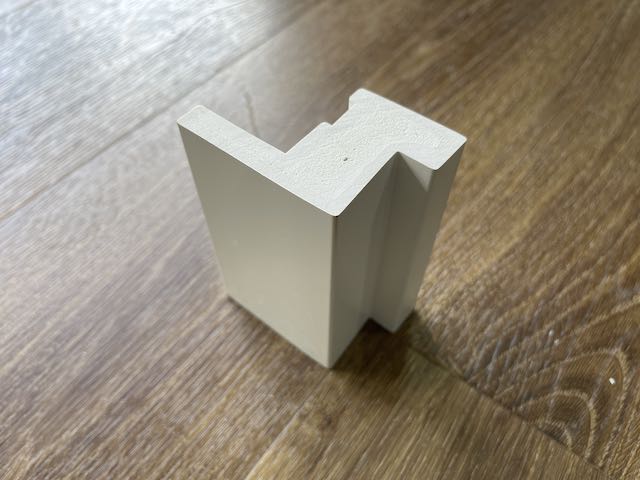

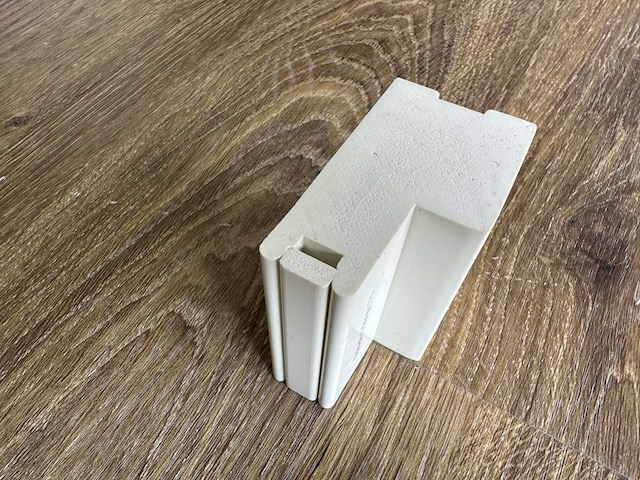

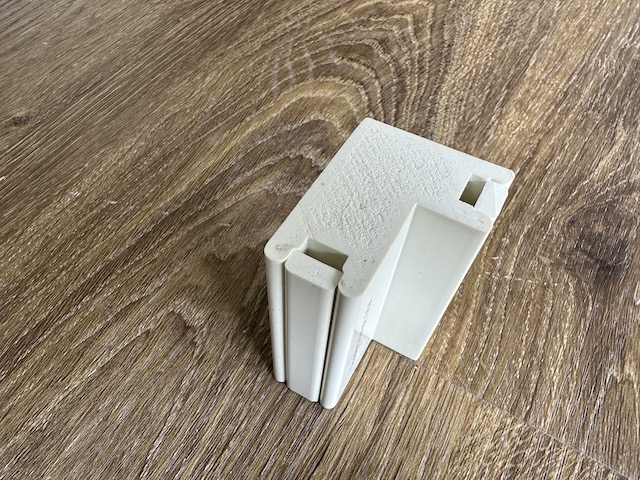

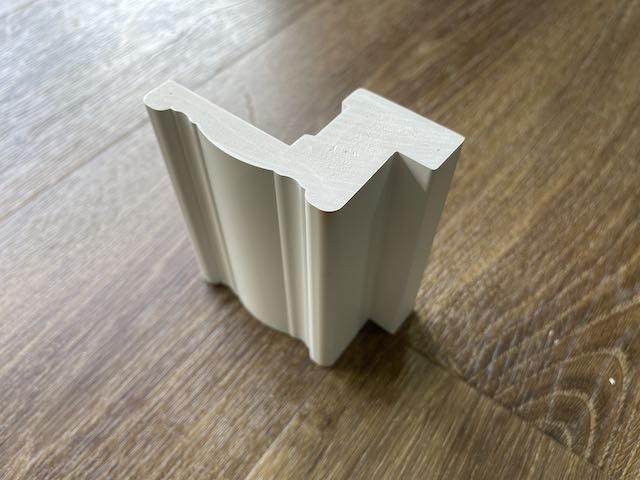

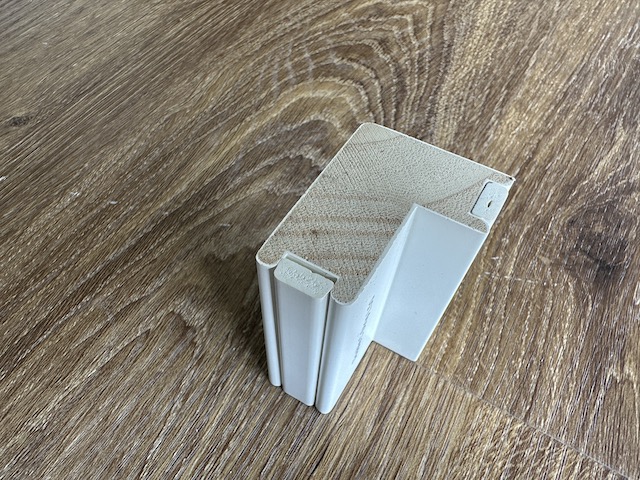

FRAMES*

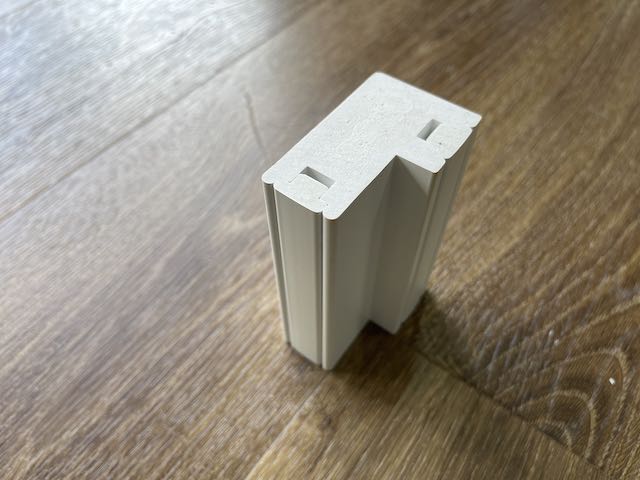

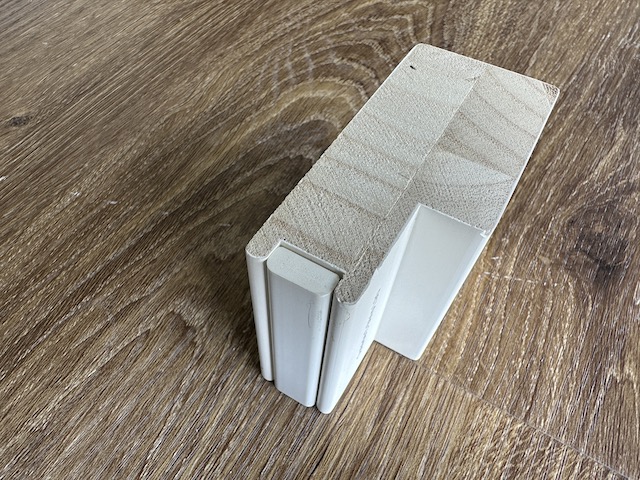

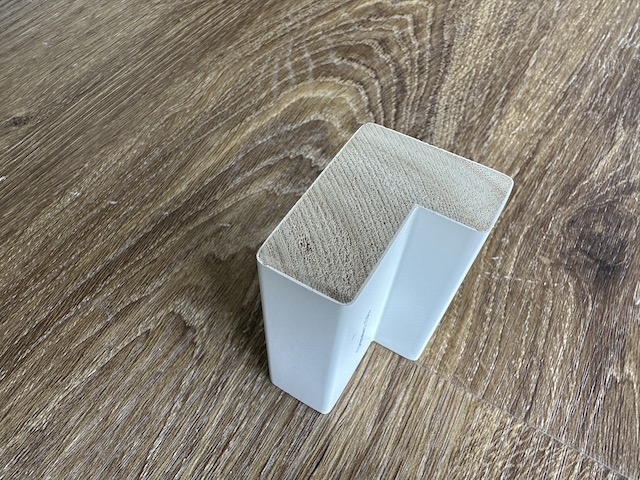

FRONT FIX - A 60mm deep frame with a removable insert around the front edge allowing fixings straight into your window frame.

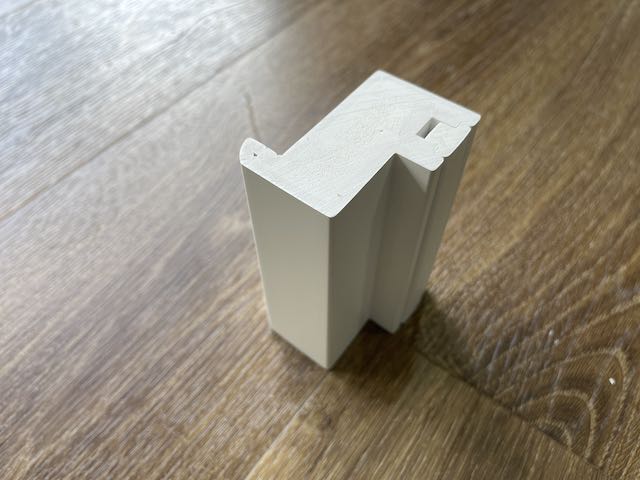

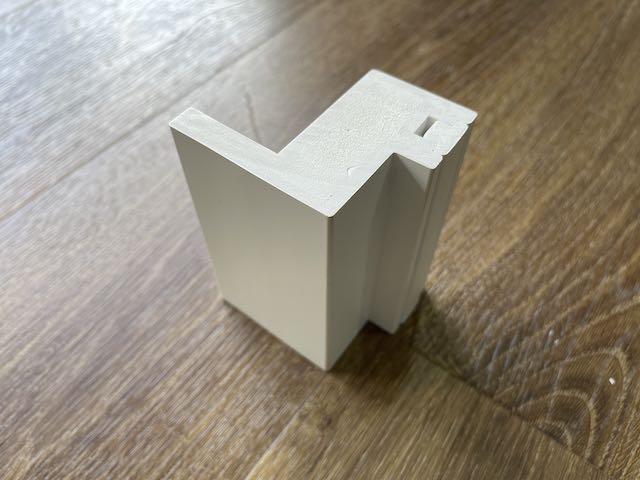

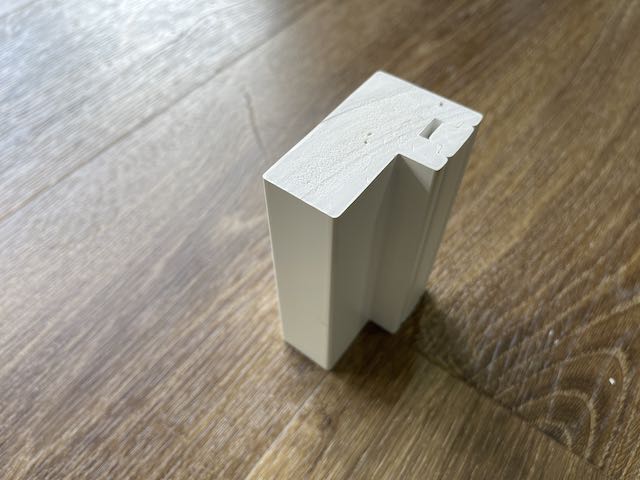

SIDE FIX - A 60mm deep frame with a removable insert around the inside edge allowing a side fixing into your recess.

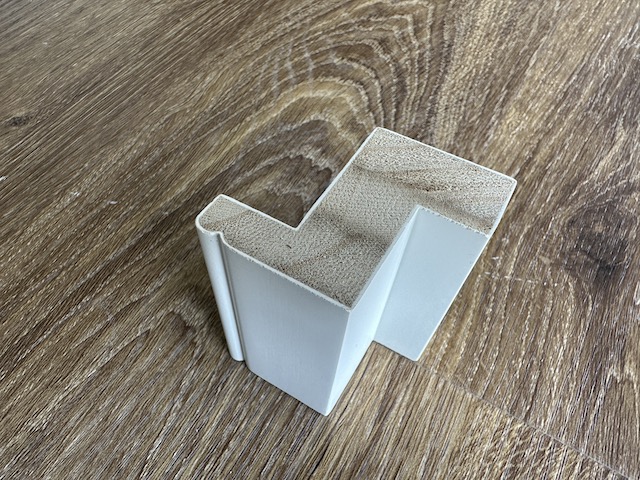

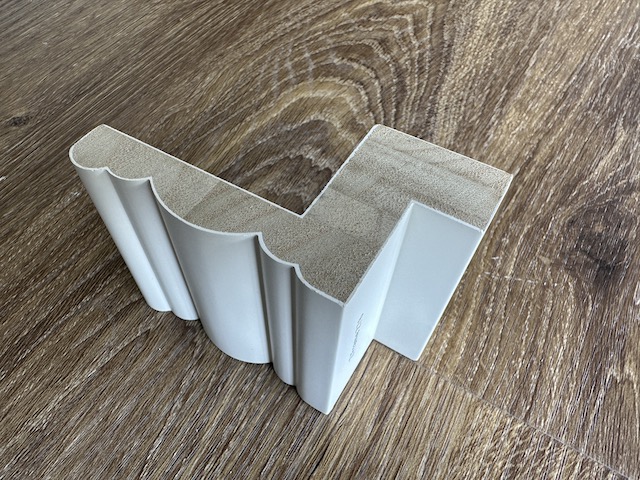

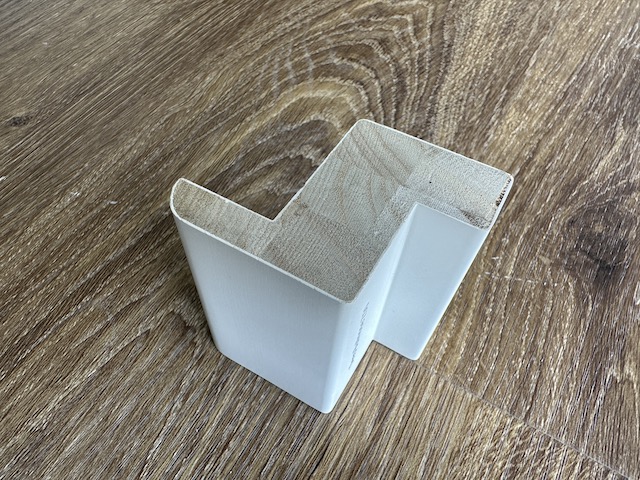

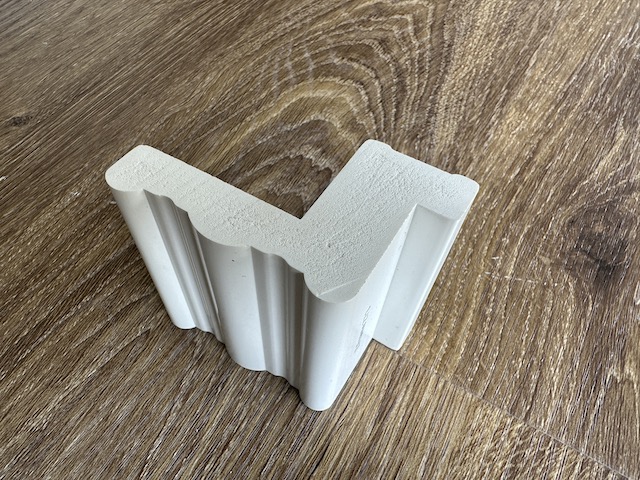

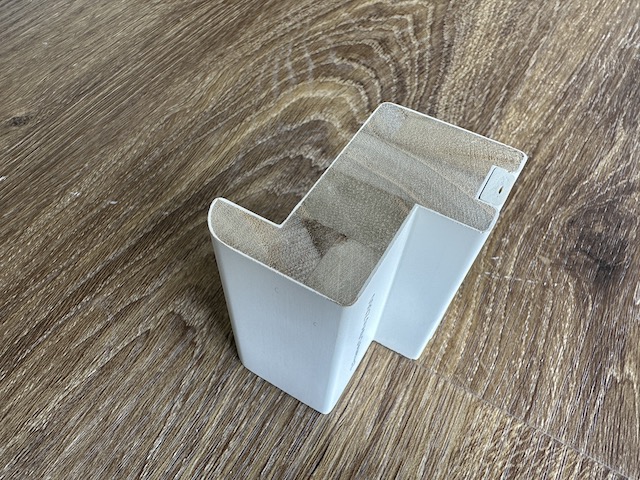

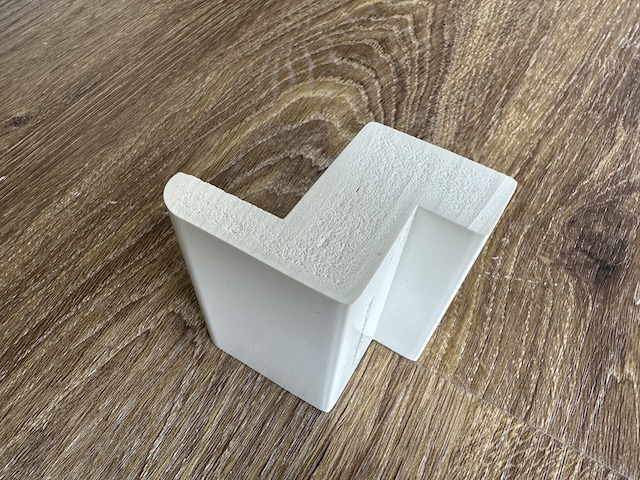

SIDE FIX Z - A 60mm deep Z frame with a removable insert around the inside edge allowing a side fixing at the front edge of your recess.

Front fix – 60mm L £
Side fix – 60mm L £
Side fix – 60mm Z £

FRAMES

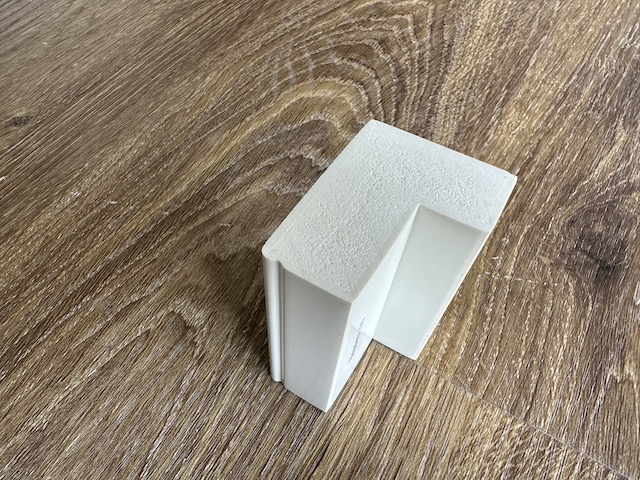

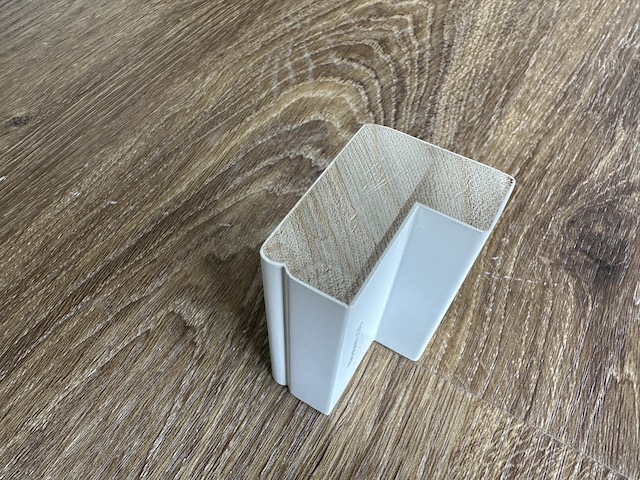

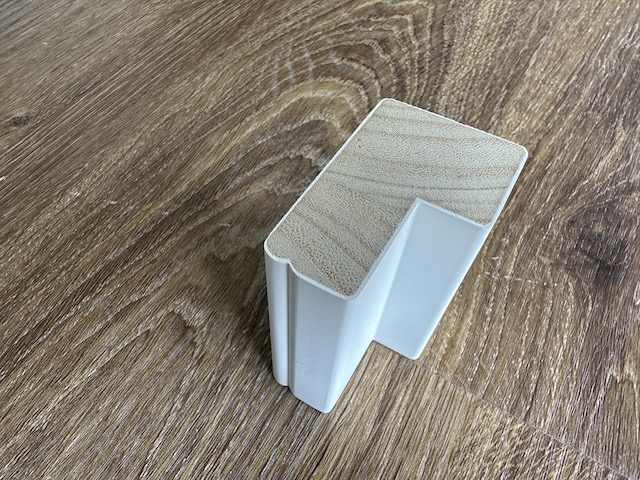

The Easyfit kit is supplied with a 60mm deep beaded L frame with pre-drill holes for the D1 fixings.

Beaded 60mm L £
LOUVRE*
76mm and 89mm louvres are popular sizes and will reflect the most light into your room.
Keep louvres the same size if ordering multiple windows
Large wide shutters suit large louvre blades
Check the louvres will not hit any protruding handles, vents or alarm points

64mm £
76mm £
89mm £

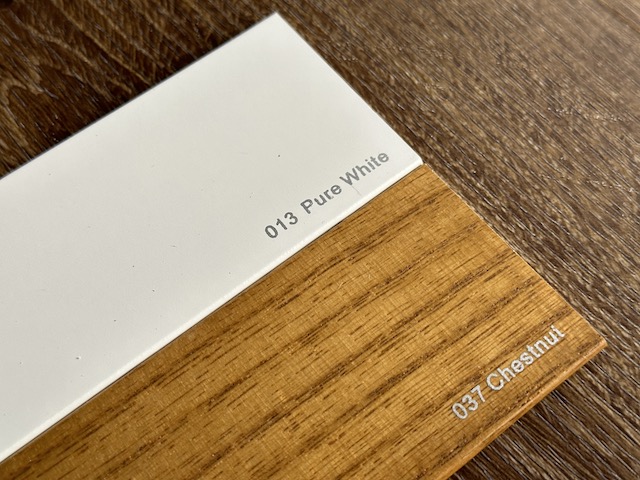

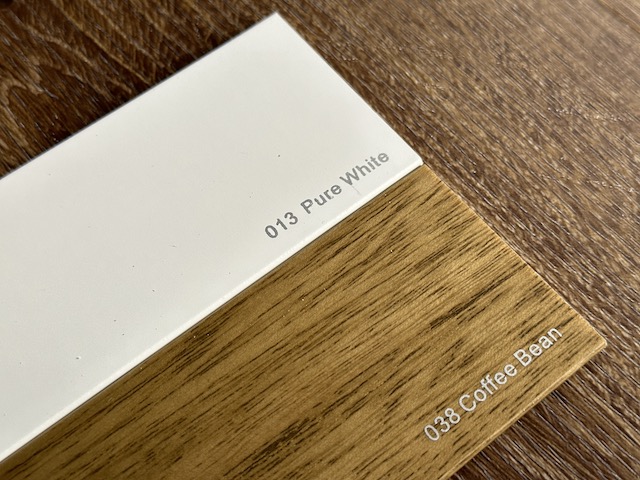

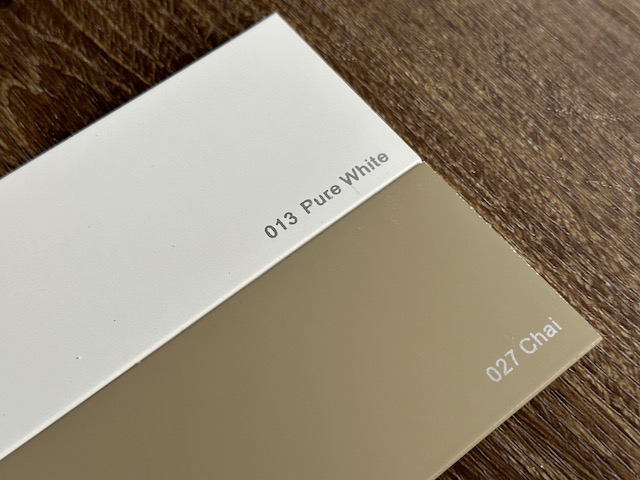

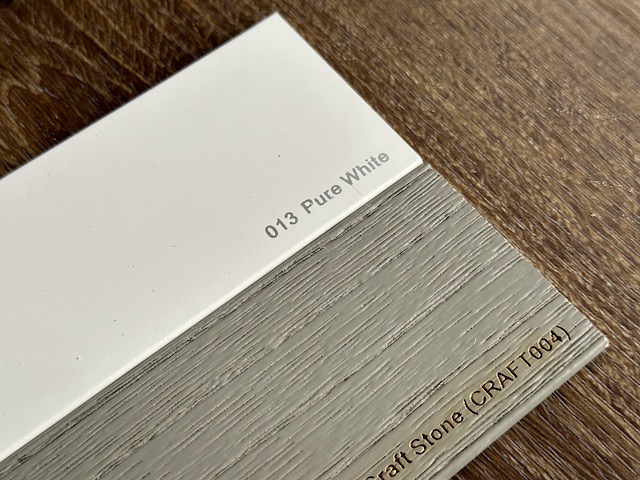

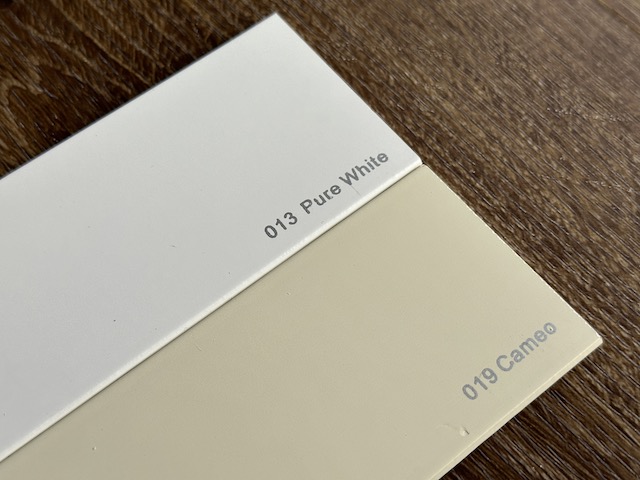

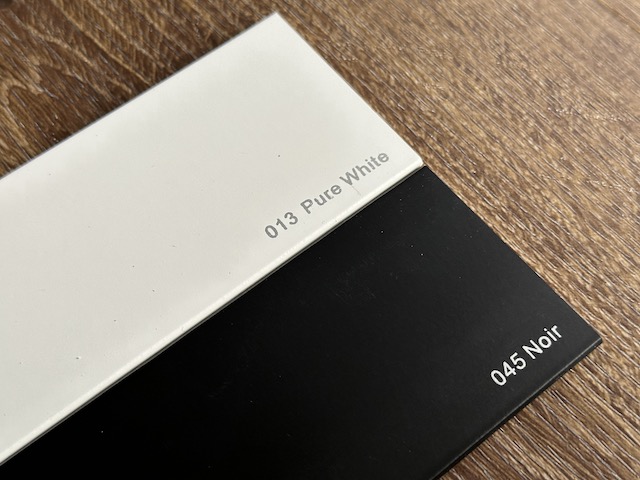

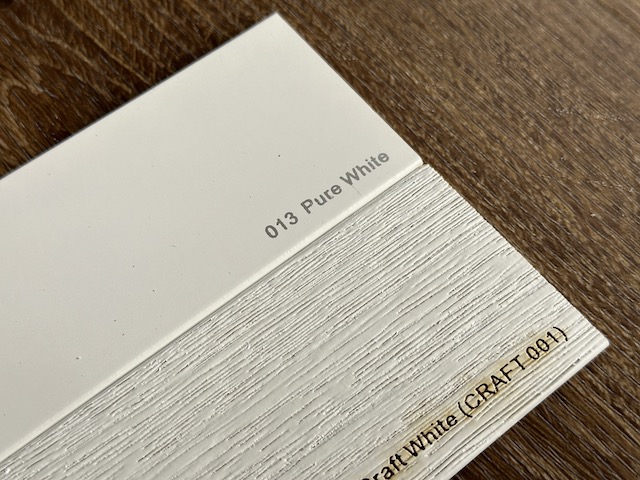

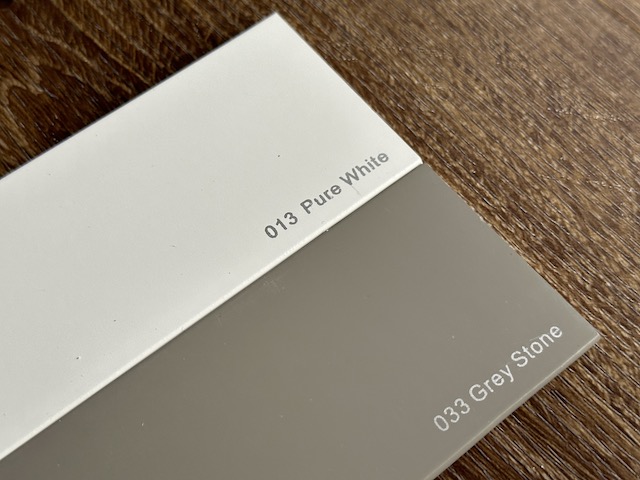

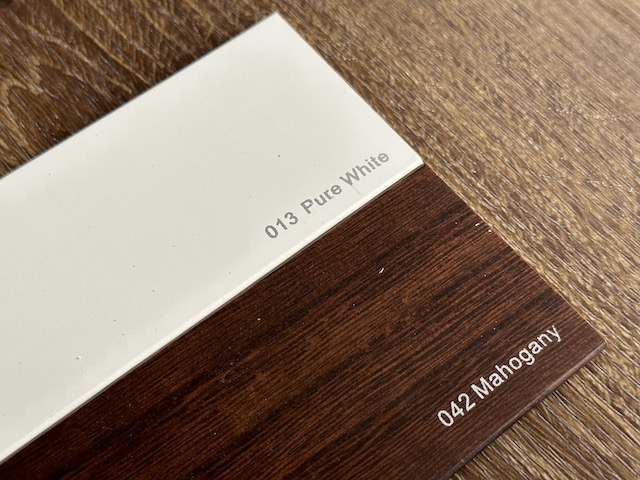

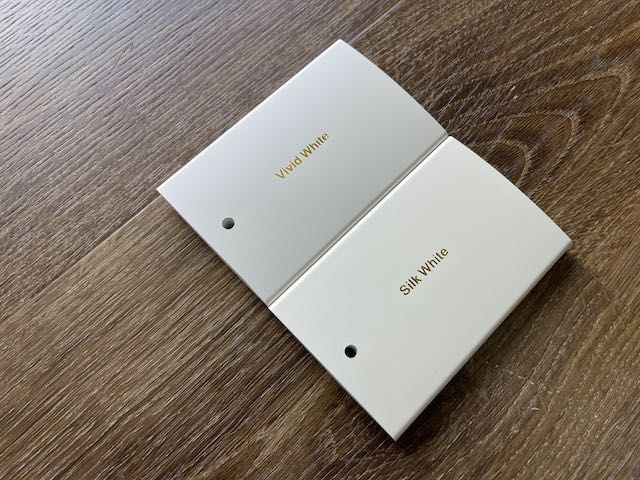

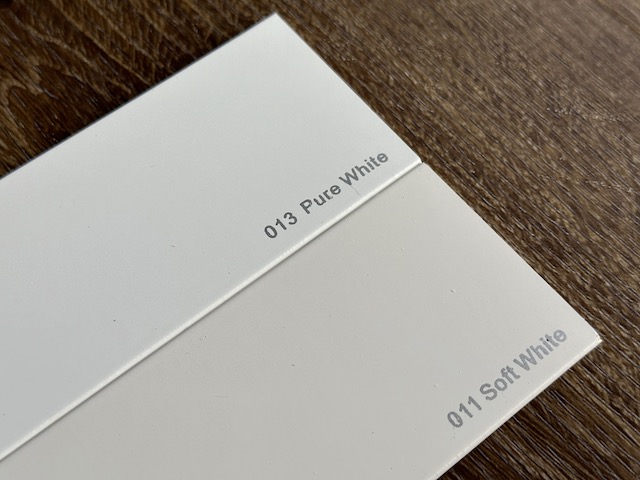

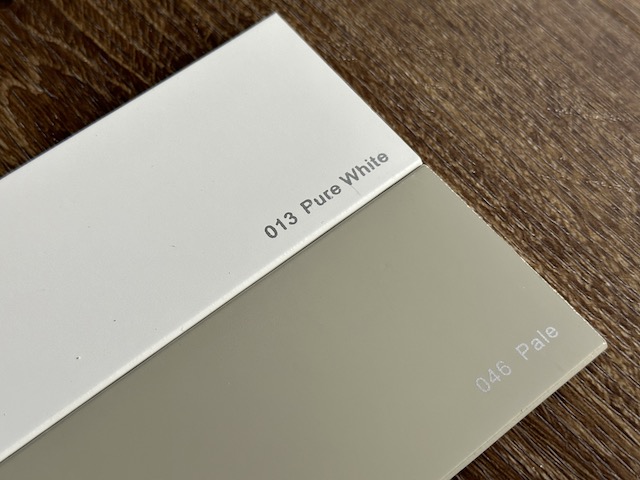

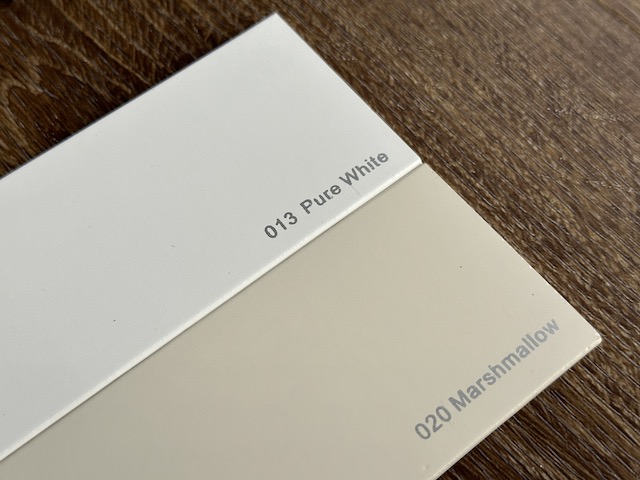

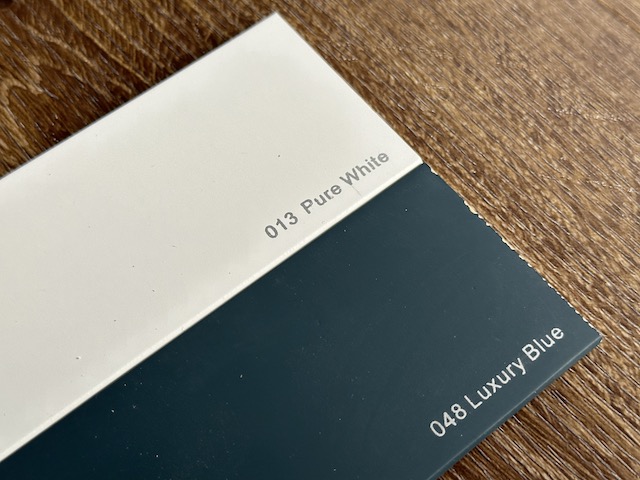

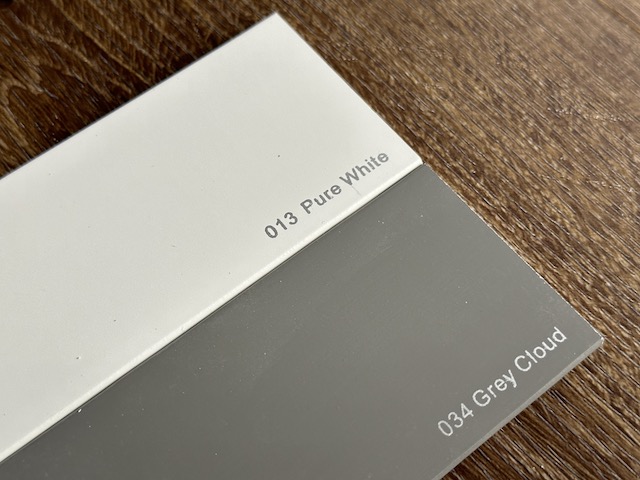

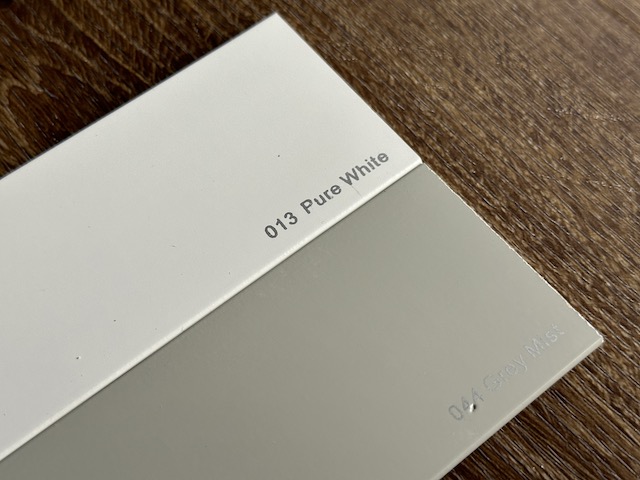

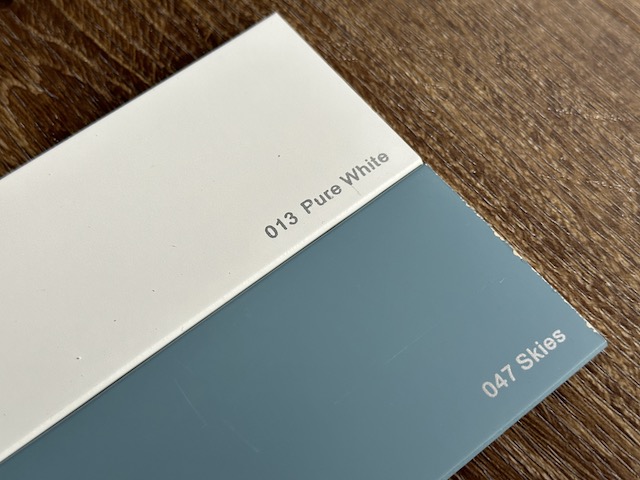

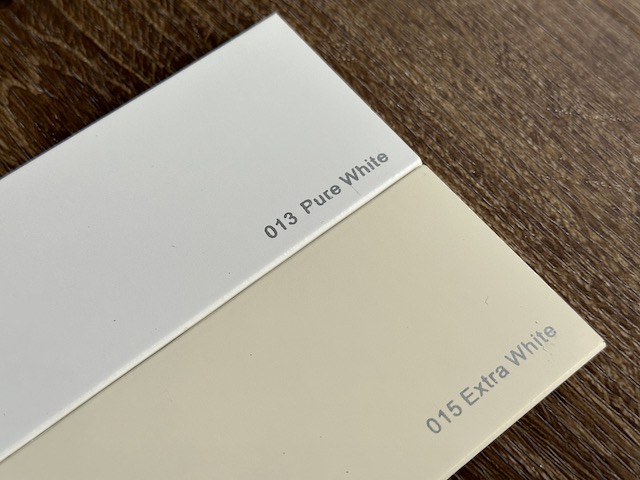

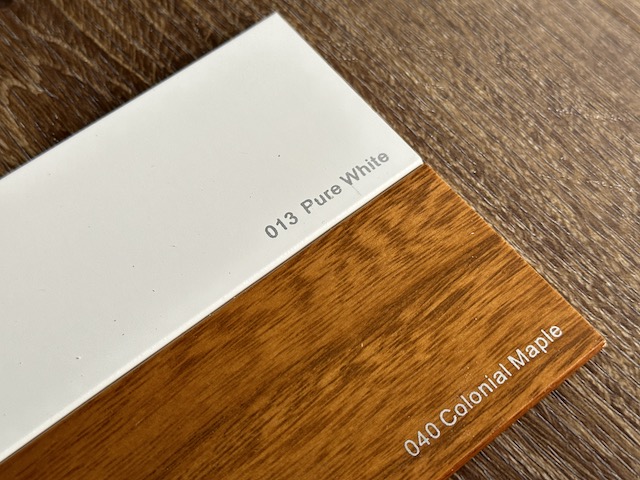

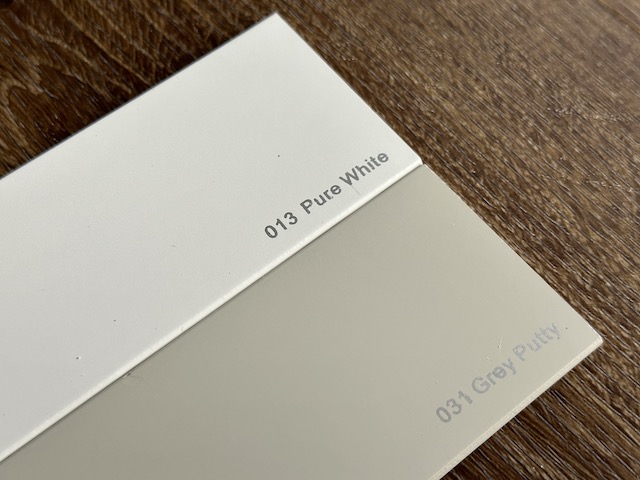

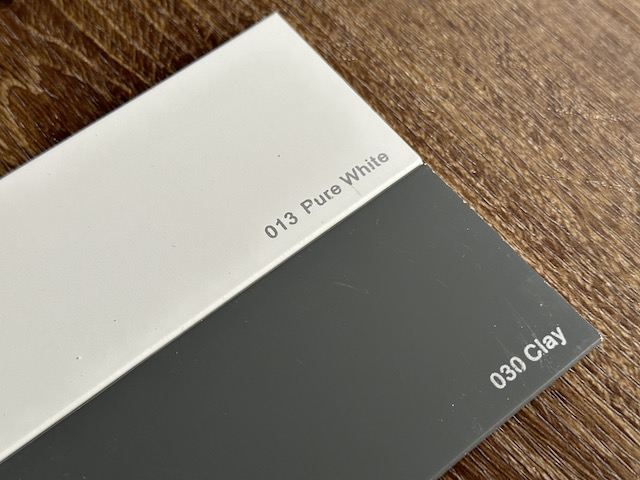

COLOR

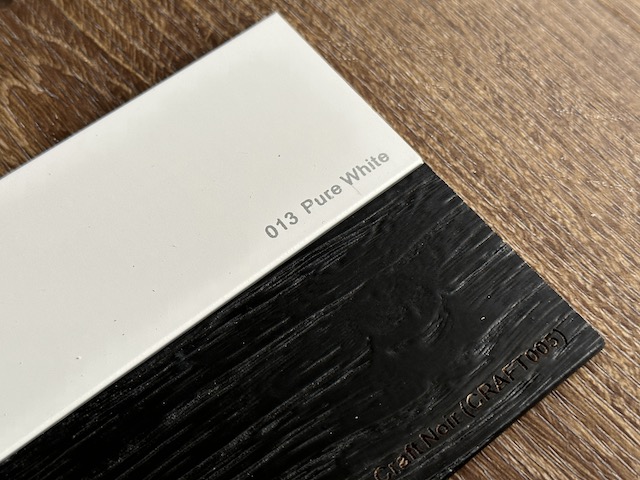

Pure White is by far the most popular colour, it's the brightest white and will reflect plenty of light into your room.

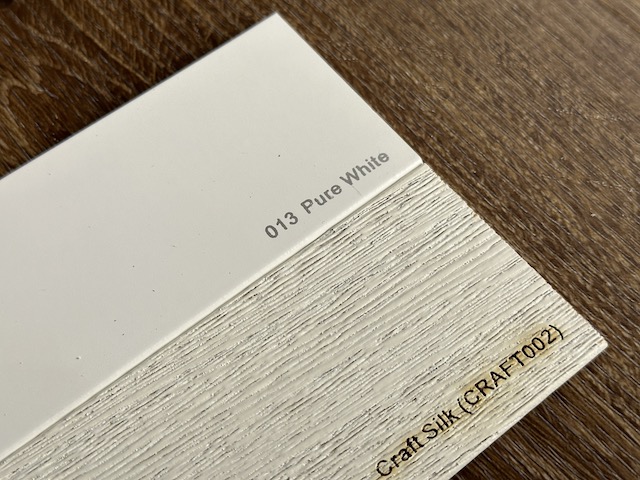

If you have older traditional sash windows, you might want to consider Silk White, it's slightly softer and will blend with older paint.
For the full range of colours, please use the trade order form.

Pure White £
Silk White £

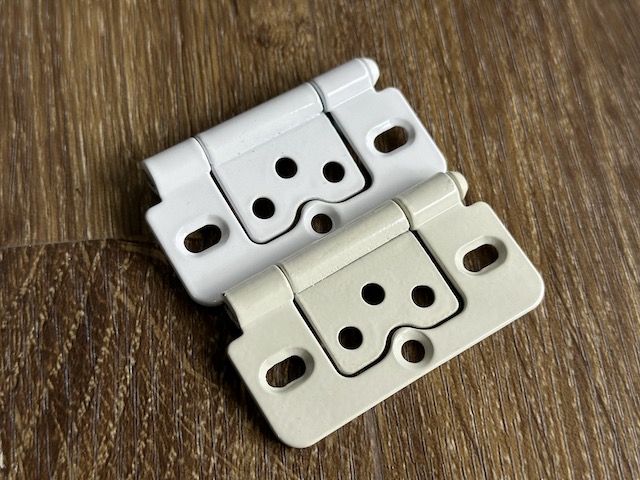

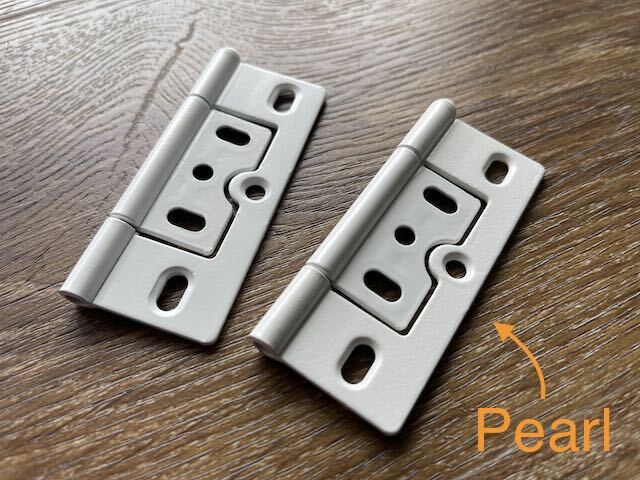

Pearl £
