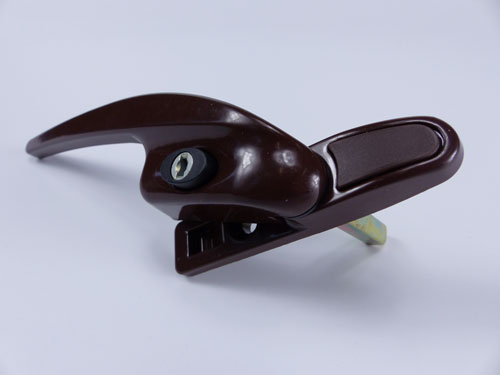

Low Profile Handles

Lockable 28mm deep low profile window handles.

• 40mm long spindles (7mm square)
• 28mm deep
• 35mm overall width
• 172mm overall length
• 17mm body width
• 43mm fixing centers

(Note: Spindles may need to be cut to length)

Fitting guide

• Open the handle and remove the hidden screw
• Close the handle and remove cover cap and the top screw
• Remove the existing handle and replace with the low profile handle
• Use the same screws in the reverse order
• Top screw first, then open the handle and fix the hidden screw
